Pin Terminal: Bare, 0.075 in Pin Dia
In Stock
$46.70
/each
Earn 46 points with this purchase
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing

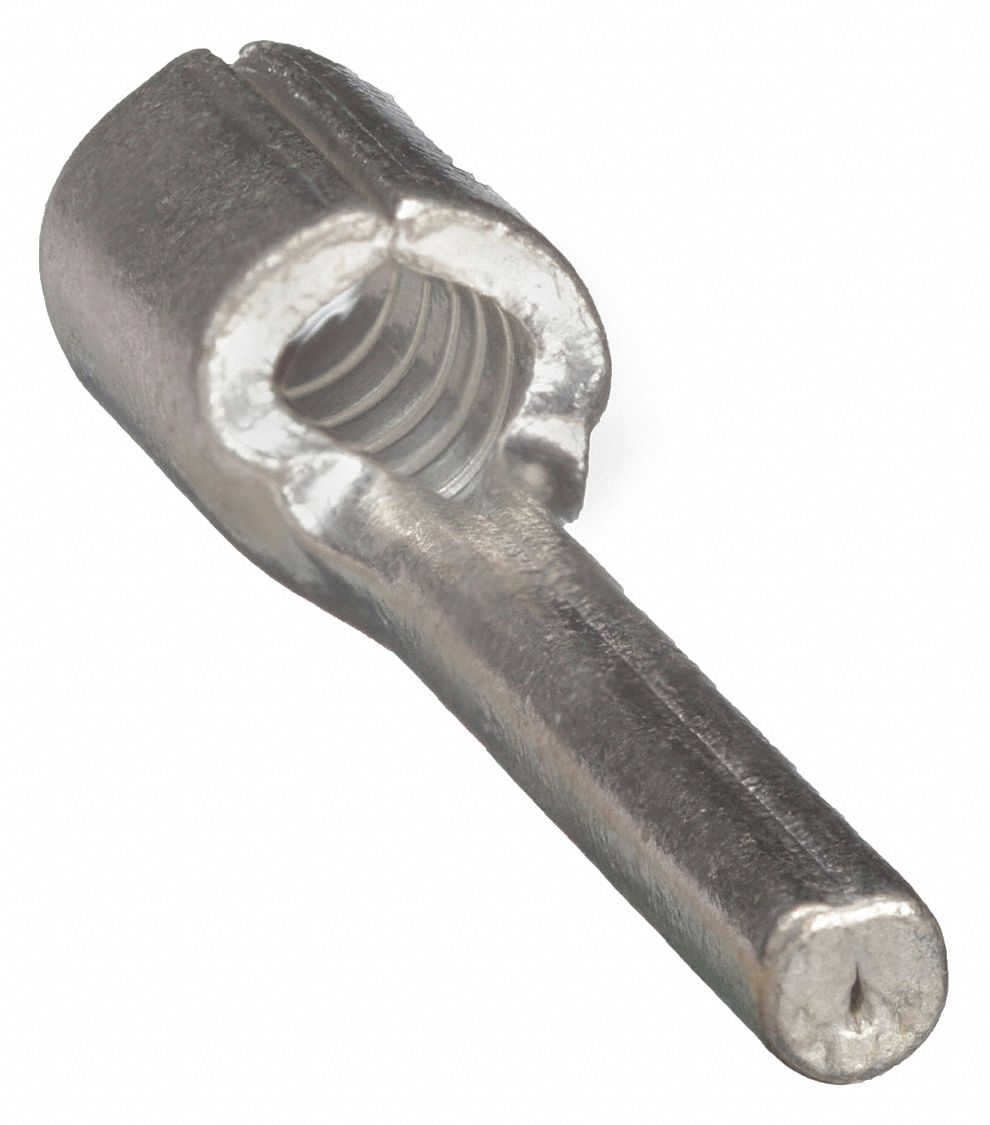

POWER FIRST Pin Terminal: Bare, 0.075 in Pin Dia
Item 5UGP7
$46.70
Customers Also Viewed
No related products found.
Product Details
| Catalog Page | 371 |
| Brand | POWER FIRST |
| Pin Diameter | 0.075 in |
| Manufacturer Part Number | 5UGP7 |
| Maximum Voltage | 600 V |
| Insulation Material | None |
| Maximum Operating Temperature | 302 Degrees F |
| For Wire Size | 16 AWG, 14 AWG |
| Insulation Color | Bare |
| Package Qty | 100 |
| Pin Length | 0.472 in |
| Seam Style | Butted |
| Mfr. Model # | 5UGP7 |
| Country of Origin | Taiwan (subject to change) |
| UNSPSC | 39121432 |
Description
Pin Terminal, Contact Finish Tin, Contact Material Copper, UL 94 Flammability Rating Not Applicable, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Pin Diameter 0.075 in, Pin Length 0.472 in, RoHS Compliant Yes, Seam Style Butted, Standards UL/cUL Listed, Termination Style Crimp, Barrel Inside Diameter 0.091 in, Barrel Length 0.189 in
