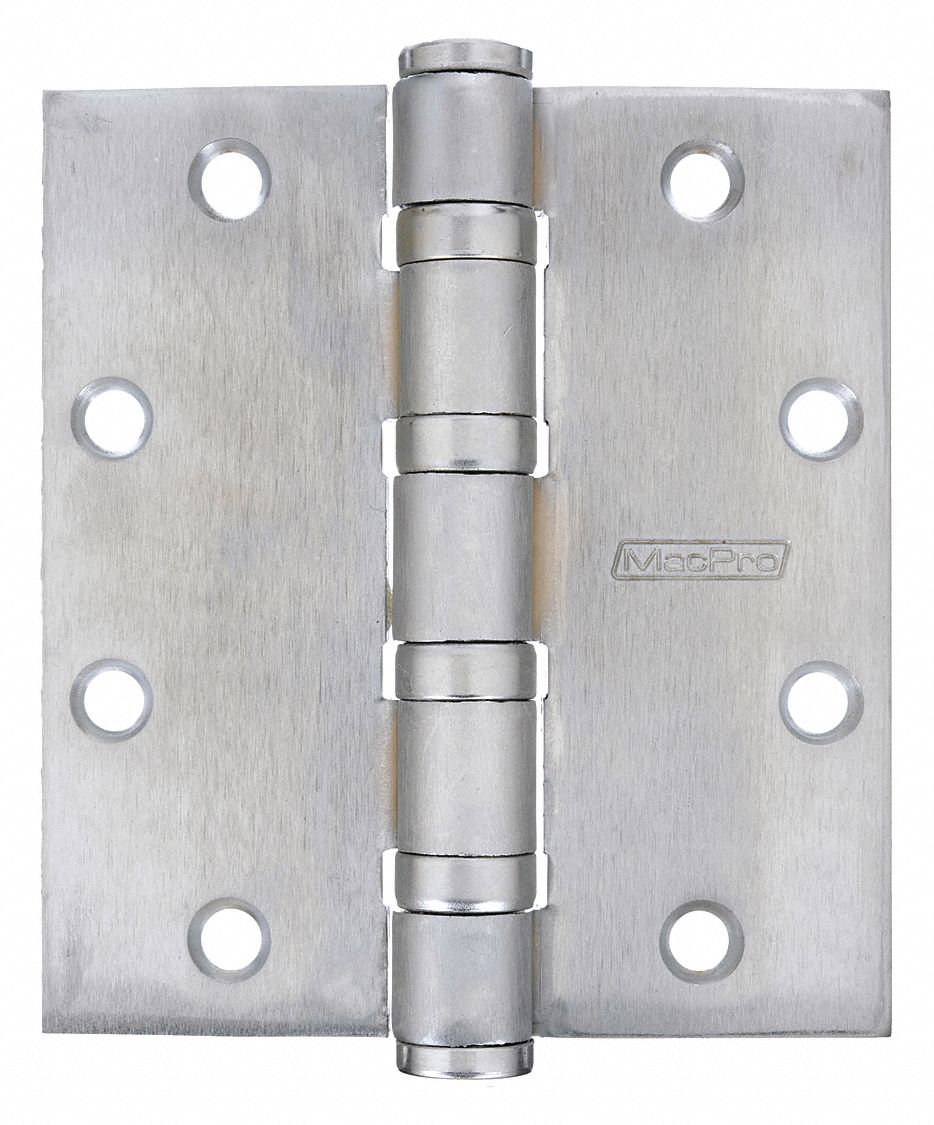

Butt Hinge: Stainless Steel, Full Mortise, 1 15/16 in Leaf Wd
In Stock
$27.60
/each
Earn 27 points with this purchase
Request quantity discount pricing
You're Viewing
MCKINNEY Butt Hinge: Stainless Steel, Full Mortise, 1...
Item 52AU17
$27.60
Customers Also Viewed
No related products found.
Product Details
| Brand | MCKINNEY |
| Prop65_WarningMessage | Compliance_Prop65_Short_CancerandRepro |
| California Prop 65 Reproductive Harm | Y |
| Corner Type | Square |
| Door Thickness - Minimum | 1-3/4 in |
| Manufacturer Part Number | 4-1/2X4-1/2 MPB91 32D |
| Overall Width | 4-1/2 in |
| Number of Holes per Leaf | 4 |
| Door Leaf Height | 4-1/2 in |
| Frame Leaf Width | 1-15/16 in |
| RoHS - Restricted Use of Hazardous Substances Directive (RoHS) | N |
| Number of Holes | 8 |
| Hand Orientation | Non-Handed |
| Pin Diameter | 5/8 in |
| Door Leaf Width | 4-1/2 in |
| Includes Hardware | Hardware Included |
| Frame Leaf Height | 4-1/2 in |
| California Prop 65 Cancer | Y |
| Sub-brand | Hinge |
| Material | Stainless Steel |
| Load Capacity | 250 lb |
| Pin Material | Steel |
| Is this a Hazardous Material Product? | N |
| Ozone Depleting Substance | N |
| Properties | Vandal-Resistant |
| Bearing Type | Plain |
| EnvironmentallyPreferable_Indicator | N |
| Finish | Stainless Steel, Satin Stainless Steel |
| California Prop 65 Warning Short Message Compliancy | Y |
| Standards | NFPA 80, ANSI/BHMA A156.1, ANSI/BHMA A156.7 |
| Display Sell UOM | EA |
| Features | MPB79 and MPB68 Approved for NFPA 80 Fire-Rated Openings, For Standard Weight Doors Only, use MPB79 or MPB91 if Door has Closing Device |
| Should Sales be Restricted by Region? | N |
| Display Qty | 1 |
| Door Thickness - Maximum | 1-3/4 in |
| Product Powered by Fossil Fuel | N |
| Removable Pin | Yes |
| Fire Rating | 3 hr |
| Range of Motion - Maximum | 270 Degrees |
| Door Leaf Thickness | 0.134 in |
| Mounting Style | Full Mortise |
| Safety Data Sheet (SDS) Applicable? | N |
| Frame Leaf Thickness | 0.134 in |
| Freight Class Code | 18 |
| Storage Protection Code | A |
| Mfr. Model # | 4 1/2X4 1/2 MPB91 32D |
Description
Full Mortise Hinge, No Hospital Tip
