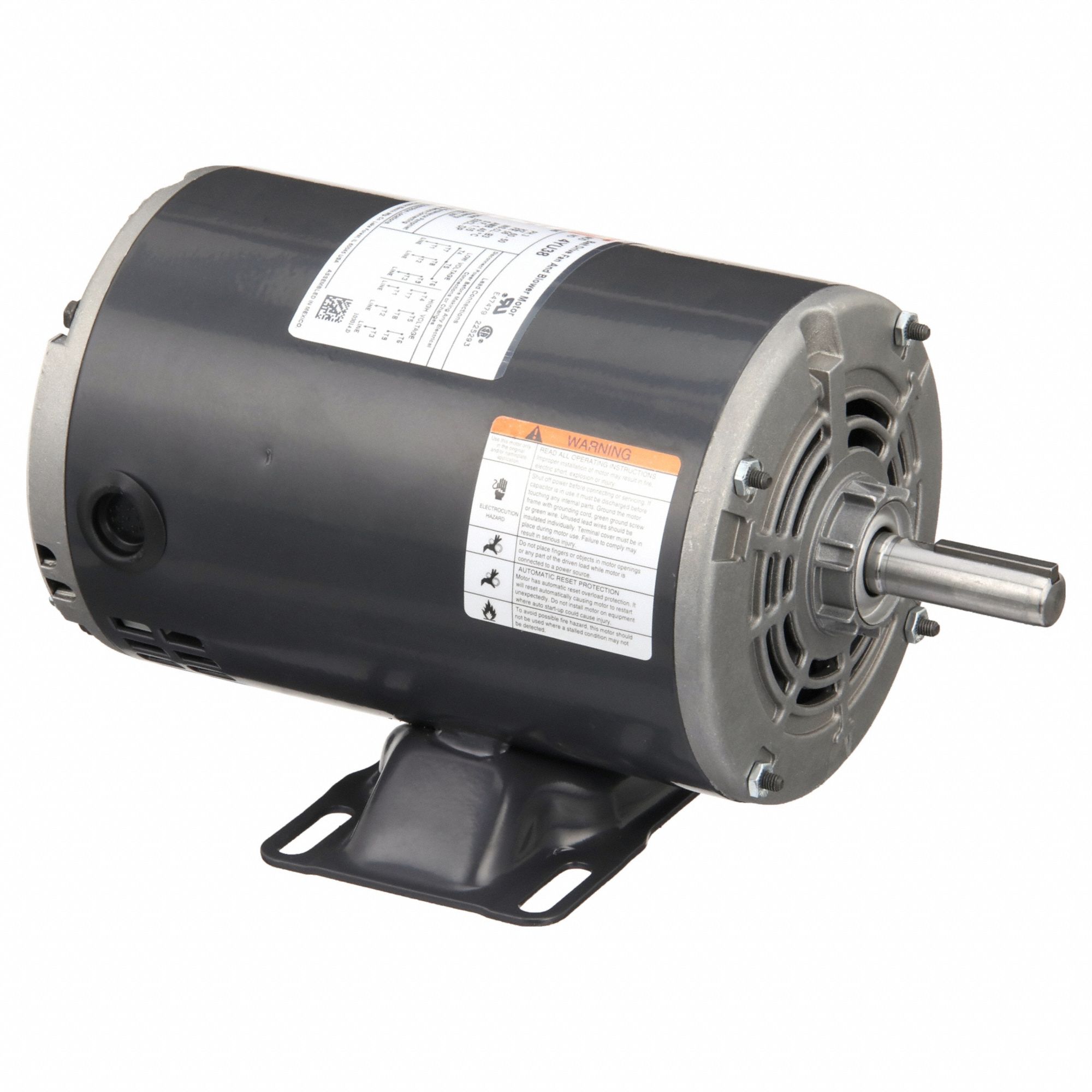

Blower Motor: 1 Speed, Open Drip Proof, Rigid Base Mount, 1 hp Horsepower
In Stock
$754.50
/each
Earn 754 points with this purchase
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing
APPROVED VENDOR Blower Motor: 1 Speed, Open Drip Proof, Rigid...
Item 4YU38
$754.50
Customers Also Viewed
No related products found.
Product Details
| Catalog Page | 54 |
| Brand | APPROVED VENDOR |
| Nameplate RPM @ 60 Hz | 1,725 RPM |
| Motor Service Factor | 1.15 |
| Full Load Amps | 3.4-3.4/1.7 A |
| Frame | 56 |
| No. of Speeds | 1 |
| Phase | Three |
| Nameplate Horsepower @ 60 Hz | 1 hp |
| Shaft Length | 1-7/8 in |
| RPM Range | 1,400 - 1,800 |
| Motor Design | Three-Phase |
| Motor Thermal Protection | None |
| Shaft Dia. | 5/8 in |
| Motor Shaft Rotation | CW/CCW |
| Hz | 60/50 Hz |
| Usable @ 208V | Yes, Usable at 208V |
| Voltage | 208-230/460V AC |
| Motor Mounting Type | Rigid Base |
| Nominal Voltage | 208-230V AC |
| Ins. Class | B |
| Motor Enclosure Design | Open Drip Proof |
| Mfr. Model # | 4YU38 |
| Country of Origin | Mexico (subject to change) |
| UNSPSC | 26101602 |
Description
Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 3.4-3.4/1.7 A Full Load Amps, 56 Frame, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
