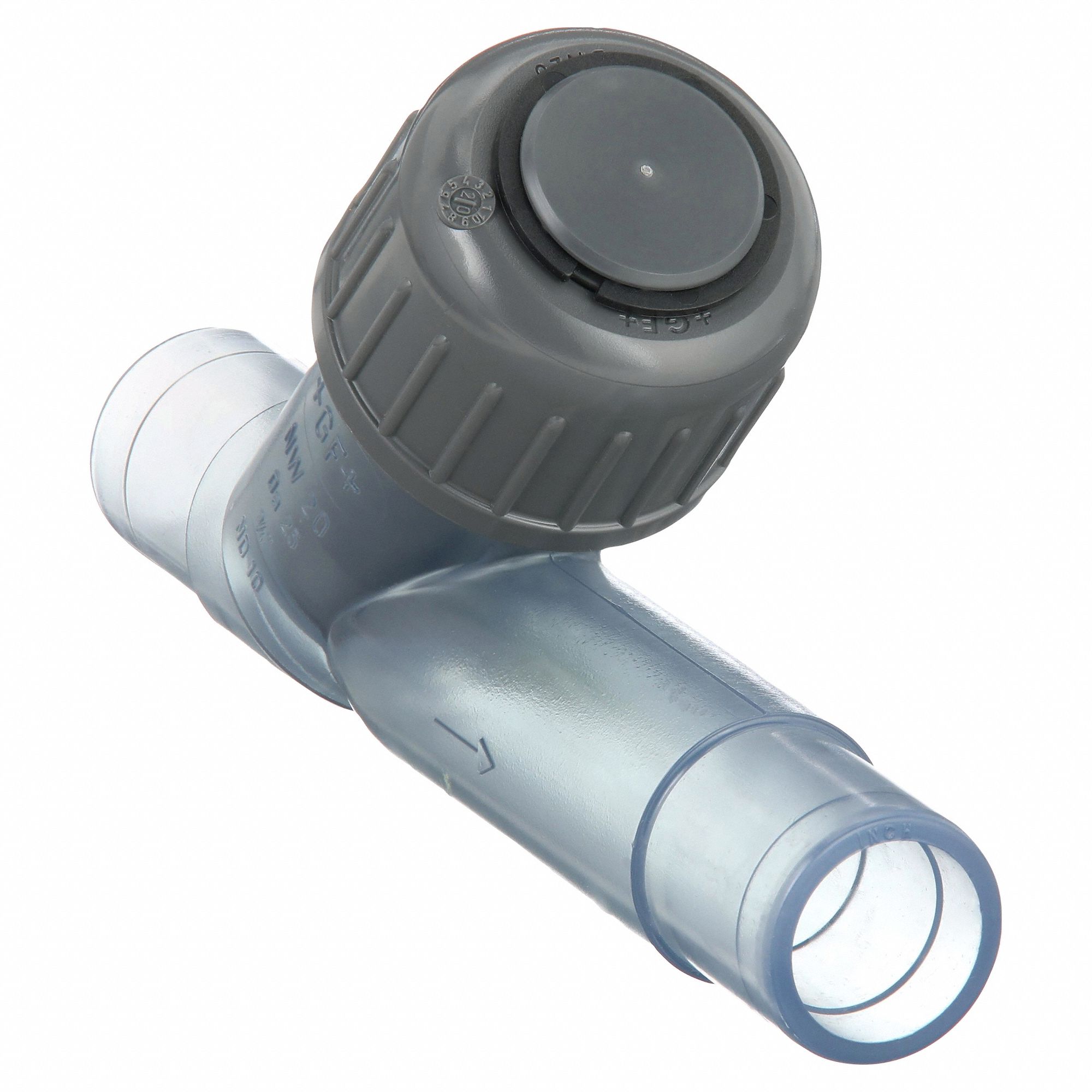

Y Check Valve: Piston, Y-Style Valve Body, 2 in Pipe Size, Spigot x Spigot, PVC
In Stock
$339.75
/each
Earn 339 points with this purchase
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing
GF PIPING SYSTEMS Y Check Valve: Piston, Y-Style Valve Body, 2...
Item 4KPY2
$339.75
Customers Also Viewed
No related products found.
Product Details
| Brand | GF PIPING SYSTEMS |
| Silent Check | Standard |
| Maximum Pressure - Operating | 10 bar |
| Seat Material | EPDM |
| Valve Body Style | Y-Style |
| Connection Type | Spigot x Spigot |
| Seal Material | EPDM |
| Standards | ISO/JIS |
| Flow | 77 gpm |
| Nominal Valve Size | 2 in |
| Cracking Pressure | 0.43 psi |
| For Media | General Purpose |
| Media Temp. Range | 32 Degrees F to 140 Degrees F |
| Maximum Pressure - Steam | Not Rated |
| Check Mechanism | Piston |
| 3-A Standard Compliance | Not Rated |
| Check Mechanism Material | PVC |
| Body Material | PVC |
| Mounting Orientation | Vertical, Horizontal |
| Mfr. Model # | 192304011 |
| Country of Origin | Switzerland (subject to change) |
| UNSPSC | 40141622 |
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Y, Body Material - Valves PVC, Pipe or Tube Size 2 in, Connection Type Spigot x Spigot, Seal Material EPDM, Max. Temp. - Valves 140 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material EPDM, Application - Valves General Purpose, Length 8 27/32 in, Width 4 1/16 in, Overall Height 7 in, Hex Size Not Applicable, Standards ISO/JIS
