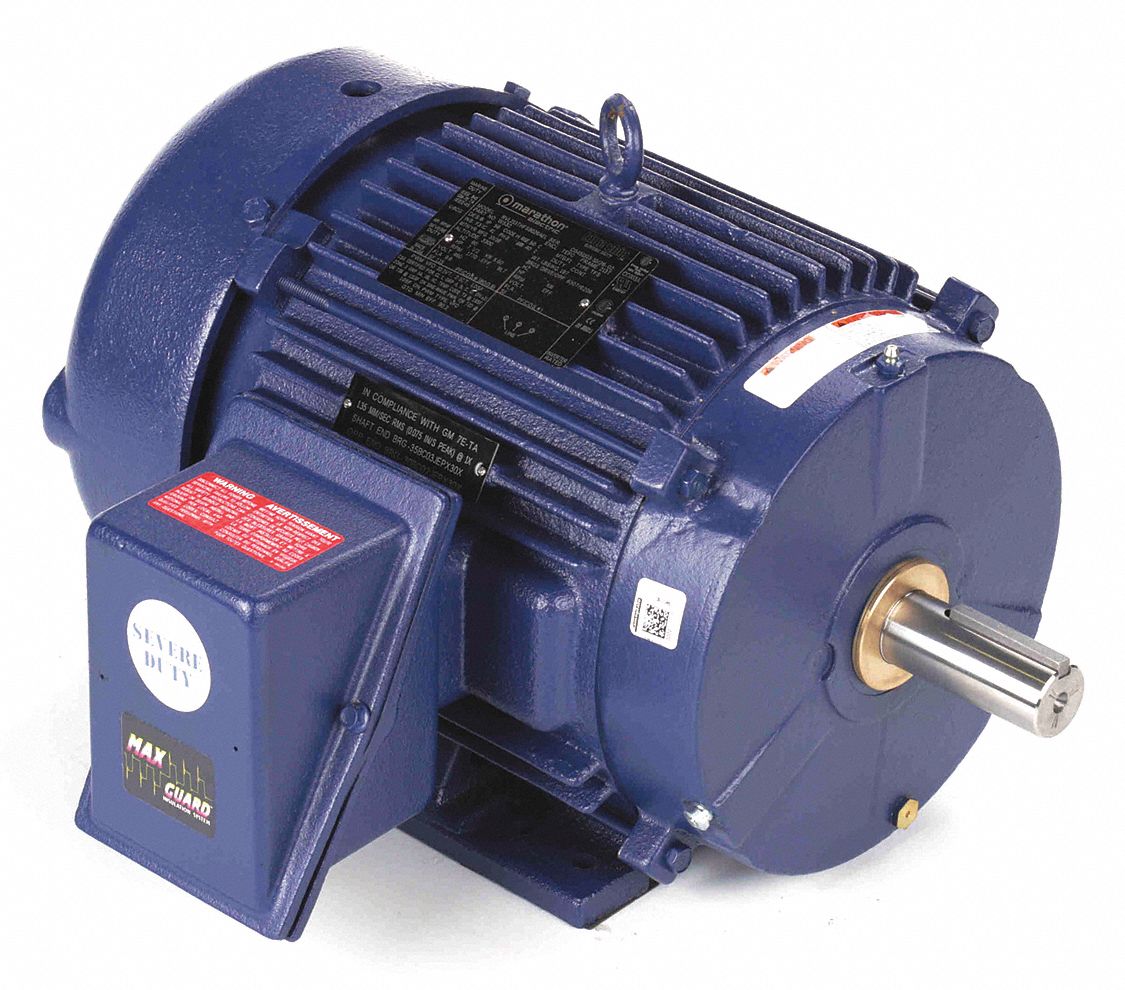

Severe Duty Motor: 7 1/2 hp Horsepower, 1, 768 RPM RPM, 460V AC, 213T Frame Size, H
In Stock
$2,583.00
/each
Earn 2583 points with this purchase
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing
MARATHON MOTORS Severe Duty Motor: 7 1/2 hp Horsepower, 1, 76...
Item 482P68
$2,583.00
Customers Also Viewed
No related products found.
Product Details
| Catalog Page | 27 |
| Brand | MARATHON MOTORS |
| Hz | 60 Hz |
| Nominal Voltage | 460V AC |
| Phase | Three |
| No. of Speeds | 1 |
| Ins. Class | H |
| Manufacturer Part Number | 213THFCD9026 |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Thermal Protection | None |
| Full Load Amps | 9.5 A |
| Motor Design | Three-Phase |
| Frame | 213T |
| HP | 7-1/2 hp |
| Frame Family | NEMA 210 |
| Motor Shaft Rotation | CW/CCW |
| RPM Range | 1,400 - 1,800 |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Usable @ 208V | Not Usable at 208V, No |
| Voltage | 460V AC |
| Mfr. Model # | 213THFCD9026 |
| Country of Origin | Mexico (subject to change) |
| UNSPSC | 26101612 |
Description
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 7 1/2 hp HP, Nameplate RPM 1,768 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 9.5 A, 213T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
