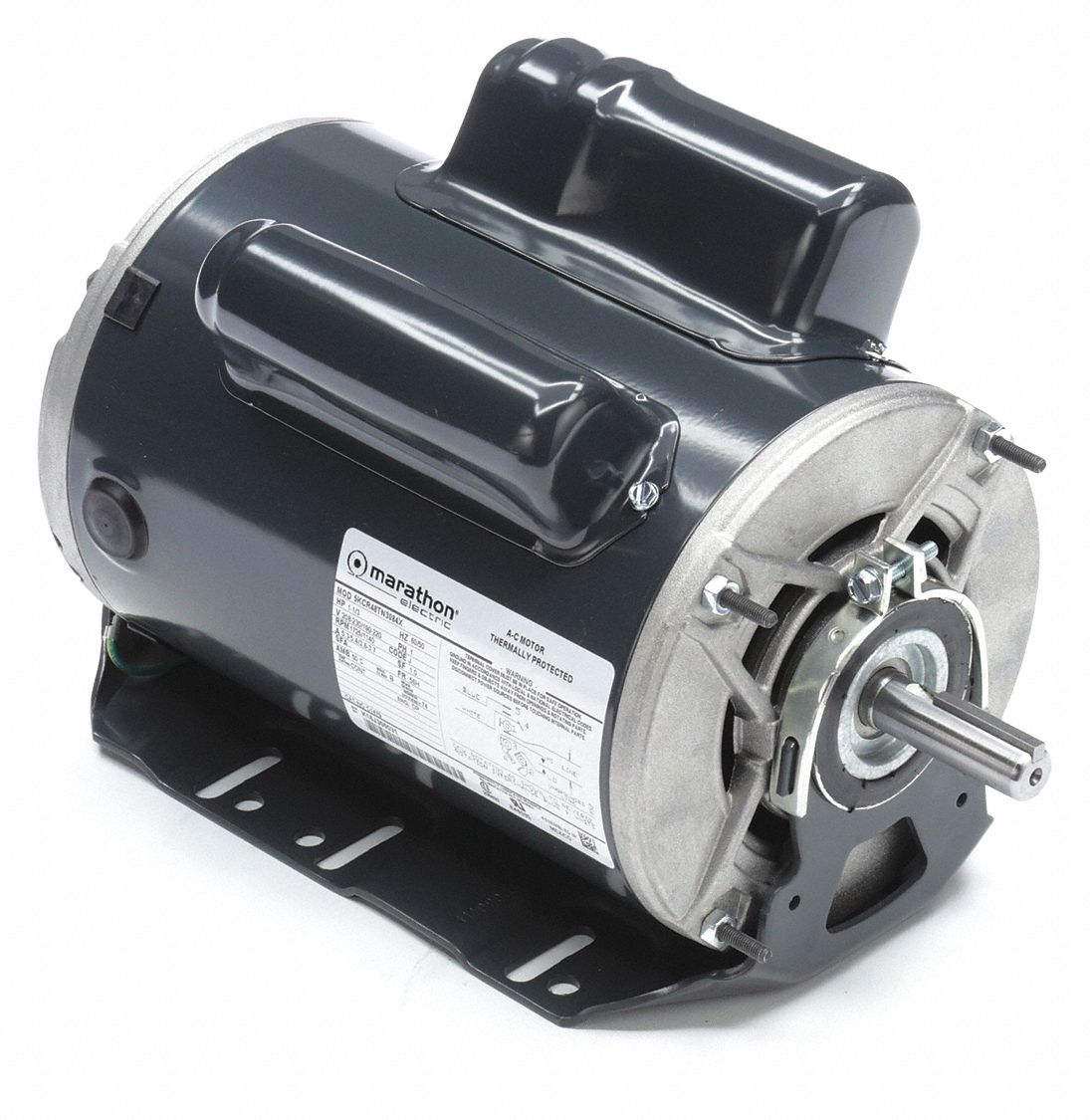

General Purpose Motor: Single Phase, 1/3 hp/1 hp, 208-230/190-220V AC, 56H Frame Size, CW/CCW
In Stock
$1,330.00
/each
Earn 1330 points with this purchase
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing
LEESON General Purpose Motor: Single Phase, 1/3 hp/1...
Item 46N398
$1,330.00
Customers Also Viewed
No related products found.
Product Details
| Catalog Page | 12 |
| Brand | LEESON |
| RPM Range | 1,000 - 1,200, 1,400 - 1,800 |
| Nominal Voltage | 208-230V AC |
| Phase | Single |
| Motor Enclosure Design | Open Drip Proof |
| Hz | 60/50 Hz |
| Motor Shaft Rotation | CW/CCW |
| Full Load Amps | 5.4/3.7 A |
| Frame | 56H |
| Nameplate Horsepower @ 60 Hz | 1 hp, 1/3 hp |
| No. of Speeds | 2 |
| Manufacturer Part Number | 5KCR48TN3084X |
| Usable @ 208V | Yes, Usable at 208V |
| Motor Design | Capacitor-Start/Run |
| Motor Mounting Type | Cradle Base |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Mfr. Model # | 5KCR48TN3084X |
| Country of Origin | Mexico (subject to change) |
| UNSPSC | 26101602 |
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp, 1/3 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 208-230/190-220V AC, Full Load Amps 5.4/3.7 A, 56H Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Motor Service Factor 1, Max. Ambient Temp. 50 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW
