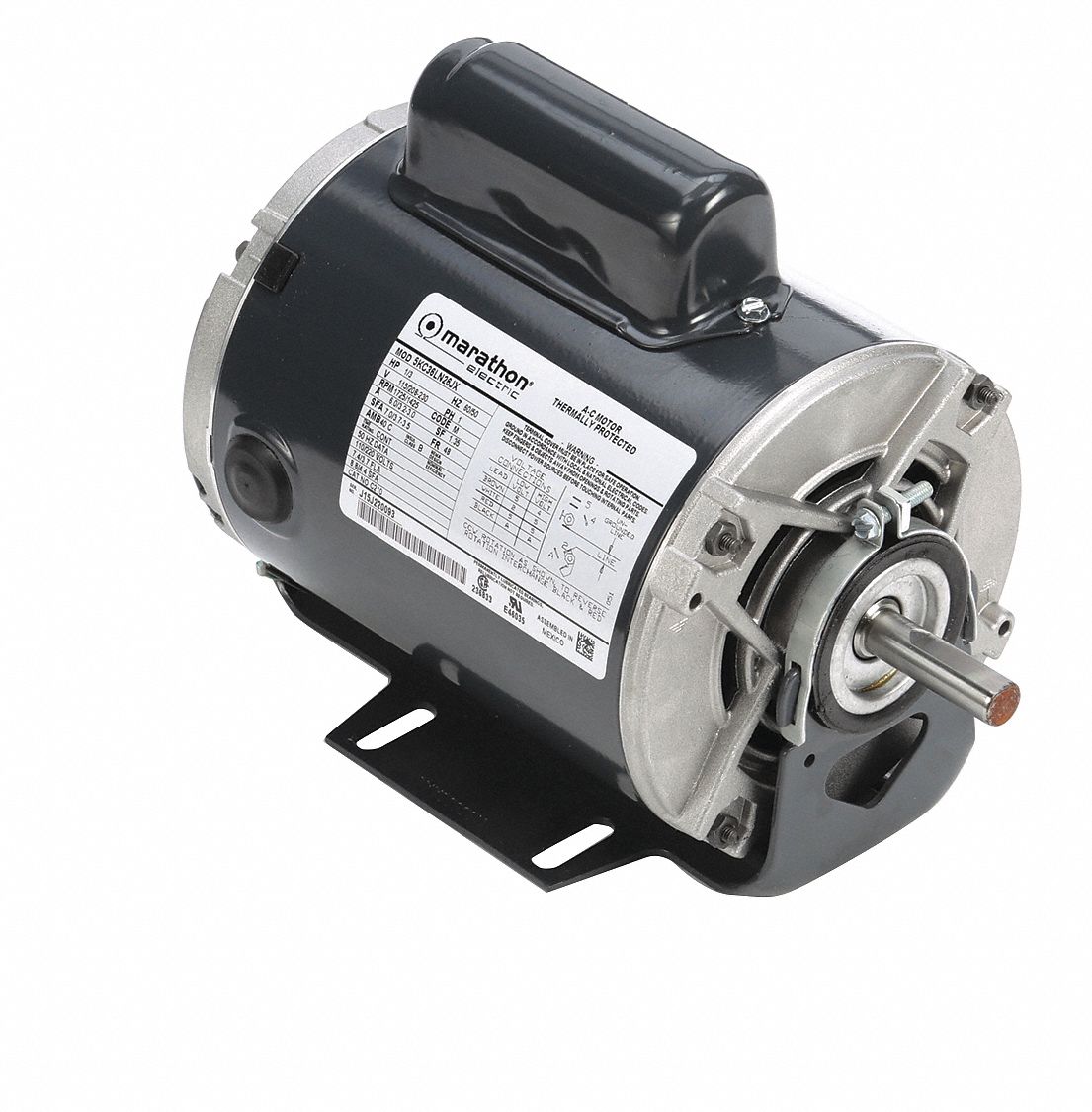

General Purpose Motor: Single Phase, 1/3 hp, 115/208-230V AC, 48 Frame Size, 1, 725 RPM, Auto
In Stock
$663.50
/each
Earn 663 points with this purchase
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing
LEESON General Purpose Motor: Single Phase, 1/3 hp,...
Item 46N357
$663.50
Customers Also Viewed
No related products found.
Product Details
| Catalog Page | 8 |
| Brand | LEESON |
| Nameplate Horsepower @ 60 Hz | 1/3 hp |
| Motor Mounting Type | Cradle Base |
| Frame | 48 |
| Full Load Amps | 6.0/3.2-3.0 A |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Drip Proof |
| Usable @ 208V | Yes, Usable at 208V |
| Motor Service Factor | 1.35 |
| RPM Range | 1,400 - 1,800 |
| Motor Shaft Rotation | CW/CCW |
| Ins. Class | B |
| No. of Speeds | 1 |
| Manufacturer Part Number | 5KC36LN26X |
| Motor Thermal Protection | Auto |
| Phase | Single |
| Hz | 60/50 Hz |
| Nominal Voltage | 115/208-230V AC |
| Mfr. Model # | 5KC36LN26X |
| Country of Origin | Mexico (subject to change) |
| UNSPSC | 26101602 |
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.0/3.2-3.0 A, 48 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
