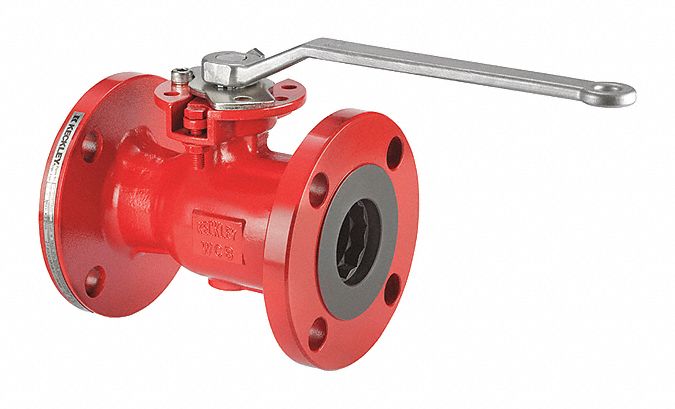

Manual Two-Way Ball Valve: 6 in, Carbon Steel, Straight, Class 300 Flange, One-Piece
In Stock
$4,308.00
Save 12%
$3,772.06
/each
Earn 3772 points for this item
($37.72 for your next purchase!)
REGISTER NOW TO EARN!
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing
KECKLEY Manual Two-Way Ball Valve: 6 in, Carbon Steel...
Mfr # BVF1RF4RCSRGSL-600
$3,772.06
Customers Also Viewed
No related products found.
Product Details
| Brand | KECKLEY |
| Vented Ball Valve | Non-Vented |
| Seal Material | Graphite |
| Color - Valve Handle | Red |
| Ball Port Style | Standard Port |
| Connection Type | Class 300 Flange |
| Overall Length | 15.88 in |
| Maximum Pressure - Operating | 740 psi |
| Body Material | Carbon Steel |
| Valve Construction | One-Piece |
| 3-A Standard Compliance | Not Rated |
| Seat Material | PTFE |
| Maximum Pressure - Combustible Gas | Not Rated |
| For Media | Combustible Gases |
| Vacuum Service Rating | -29.912 in Hg |
| Handle Material | Stainless Steel |
| Valve Body Style | Straight |
| Coefficient of Volume (Cv) | 920 |
| Ball Material | 316 Stainless Steel |
| Valve Ways | 2-Way |
| Maximum Pressure - Steam | 250 psi |
| Nominal Valve Size | 6 in |
| Stem Material | 316 Stainless Steel |
| Handle | Locking Lever |
| Media Temp. Range | -20 Degrees F to 500 Degrees F |
| ANSI Flange Class | Class 300 |
| Standards | NACE MR0175, API 607, API 608, ASME B16.34 |
| Mfr. Model # | BVF1RF4RCSRGSL-600 |
| Country of Origin | Taiwan (subject to change) |
| UNSPSC | 40141607 |
Description
Manual Two-Way Ball Valve, Body Material Carbon Steel, For Media Combustible Gases, Valve Construction One-Piece, Nominal Valve Size 6 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 740 psi, Maximum Pressure - Steam 250 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.912 in Hg, Ball Material 316 Stainless Steel, Ball Port Style Standard Port, Handle - Locking Locking
