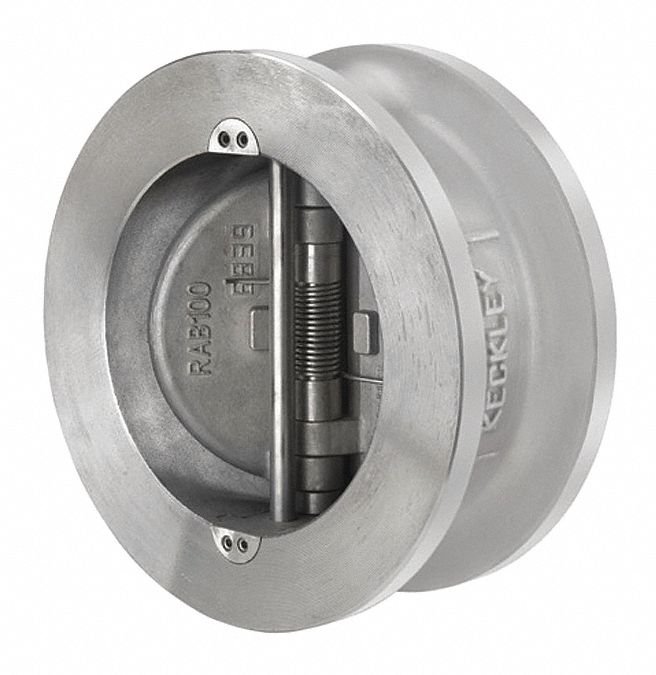

Check Valve: Double Disc, Inline Valve Body, 6 in Pipe Size, Wafer, Carbon Steel, Wafer, Std
In Stock
$1,746.00
/each
Earn 1746 points with this purchase
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing
KECKLEY Check Valve: Double Disc, Inline Valve Body,...
Item 45AL39
$1,746.00
Customers Also Viewed
No related products found.
Product Details
| Catalog Page | 2777 |
| Brand | KECKLEY |
| Maximum Pressure - Operating | 275 psi |
| Seal Material | Buna-N |
| Body Material | Carbon Steel |
| Check Mechanism | Double Disc |
| Cracking Pressure | 1.05 psi |
| 3-A Standard Compliance | Not Rated |
| Standards | MSS SP-6, Testing API 598, ASME B16.5, Conforms to API 594 & 6D, MSS SP-25, MSS SP-55, ASME B16.34 |
| Check Mechanism Material | 316 Stainless Steel |
| Silent Check | Standard |
| Connection Type | Wafer |
| Maximum Pressure - Steam | Not Rated |
| Seat Material | Buna-N |
| Coefficient of Volume (Cv) | 720 |
| Nominal Valve Size | 6 in |
| Mounting Orientation | Vertical, Horizontal |
| Valve Body Style | Inline |
| Media Temp. Range | -20 Degrees F to 250 Degrees F |
| For Media | Liquids, Gas |
| Flow | 720 gpm |
| Mfr. Model # | DD2R-CS-361IX-600 |
| Country of Origin | China (subject to change) |
| UNSPSC | 40141622 |
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Wafer, Body Material - Valves Carbon Steel, Pipe or Tube Size 6 in, Connection Type Flanged Wafer x Flanged Wafer, Cracking Pressure 1.046 psi, Mounting Orientation Horizontal, Vertical, Seal Material Buna-N, Max. Temp. - Valves 100 Degrees F, Max. Water Pressure - Valves 285 psi @ 100 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material Buna-N, Spring Material Inconel X-750, Flow - Valves 720 gpm
