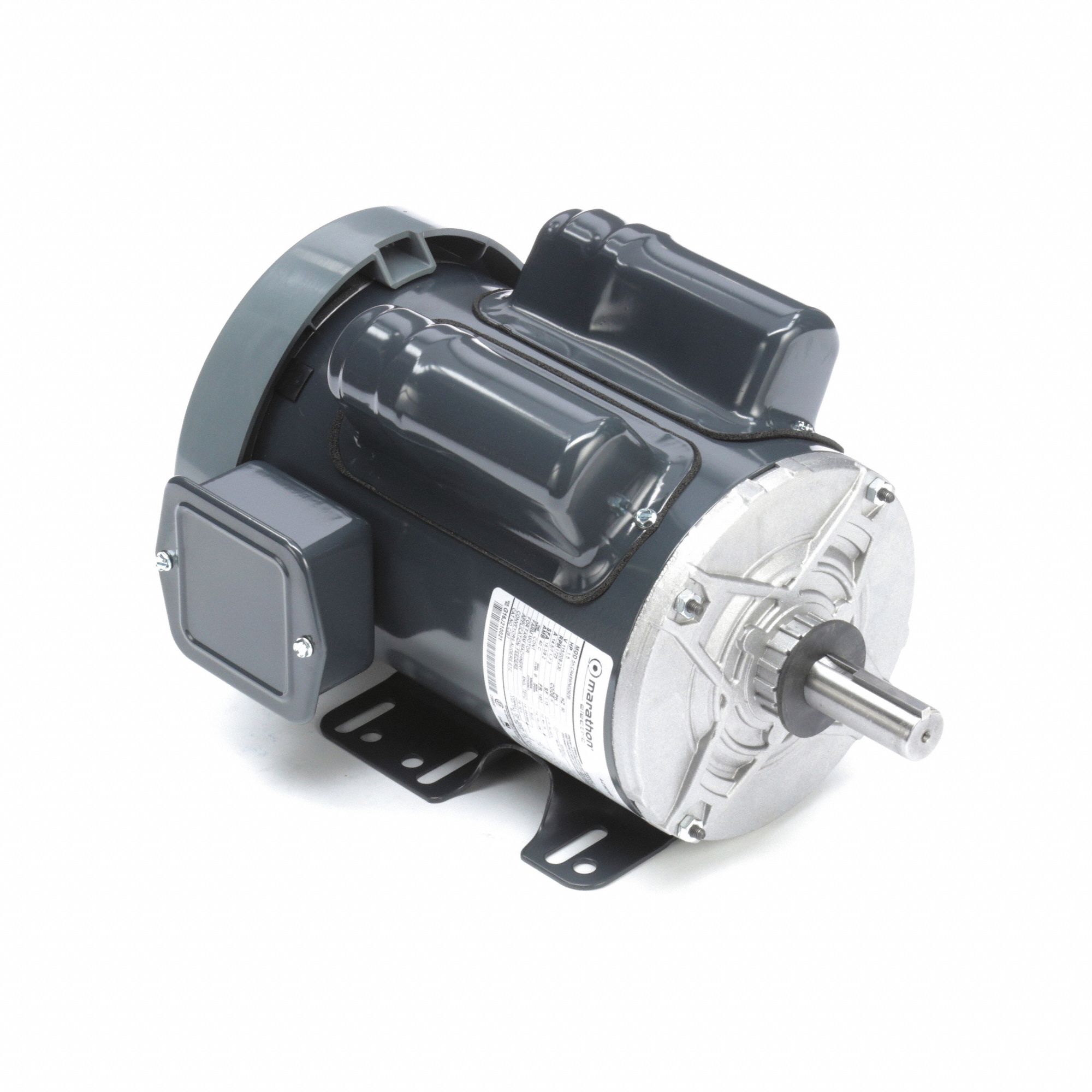

General Purpose Motor: Single Phase, 1 1/2 hp, 115/208-230V AC, 145T Frame Size, 1, 725 RPM, B
In Stock
$935.50
/each
Earn 935 points with this purchase
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing
LEESON General Purpose Motor: Single Phase, 1 1/2 hp...
Item 44D167
$935.50
Customers Also Viewed
No related products found.
Product Details
| Catalog Page | 12 |
| Brand | LEESON |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Nominal Voltage | 115/208-230V AC |
| Ins. Class | B |
| Manufacturer Part Number | 5KCR48WN0292 |
| Motor Mounting Type | Rigid Base |
| Full Load Amps | 14.5/7.3-7.1 A |
| Motor Service Factor | 1.15 |
| Usable @ 208V | Yes, Usable at 208V |
| Nameplate Horsepower @ 60 Hz | 1-1/2 hp |
| Phase | Single |
| No. of Speeds | 1 |
| Motor Thermal Protection | None |
| RPM Range | 1,400 - 1,800 |
| Motor Design | Capacitor-Start/Run |
| Hz | 60 Hz |
| Motor Shaft Rotation | CW/CCW |
| Frame | 145T |
| Mfr. Model # | 5KCR48WN0292 |
| Country of Origin | Mexico (subject to change) |
| UNSPSC | 26101602 |
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.5/7.3-7.1 A, 145T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
