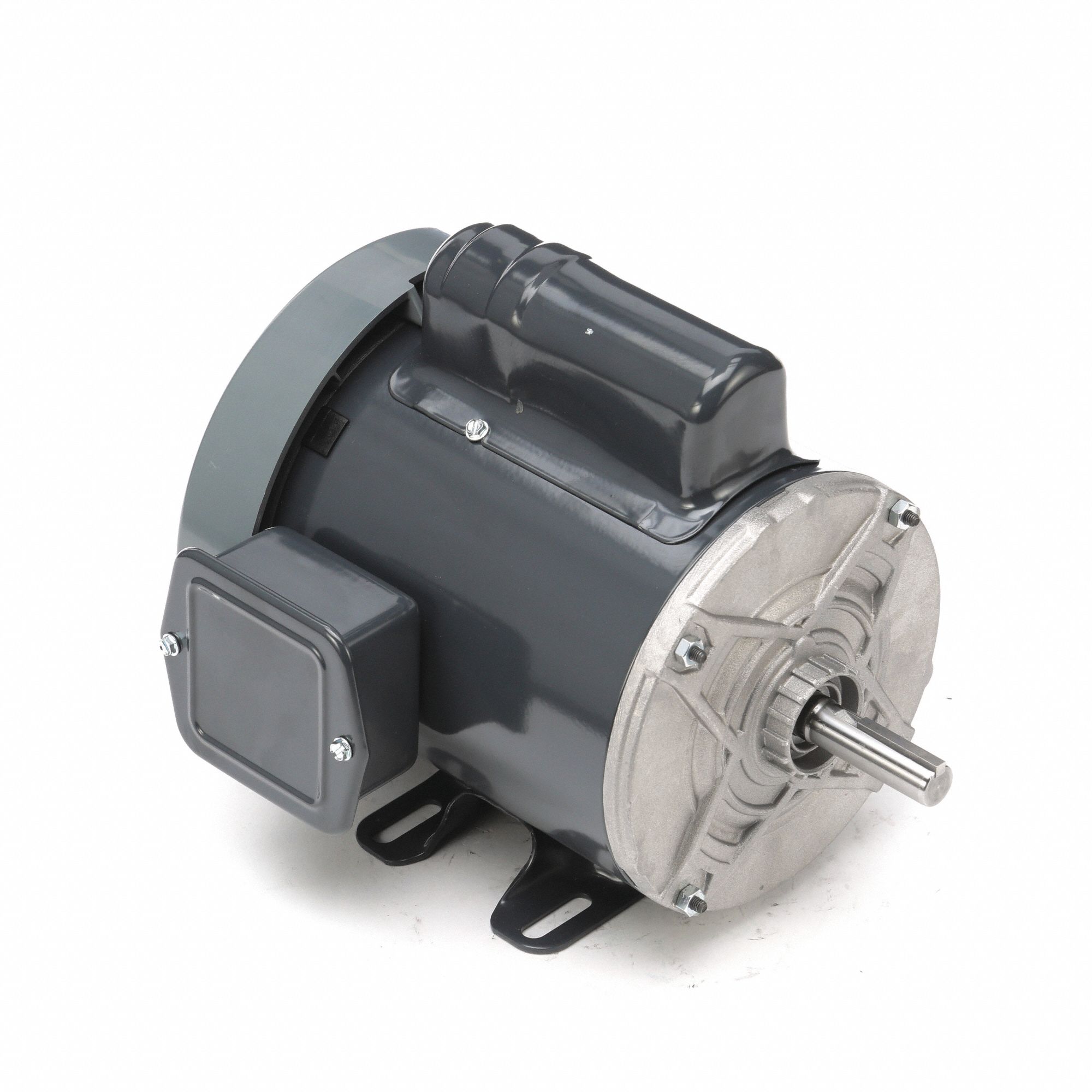

General Purpose Motor: Single Phase, 3/4 hp, 115/230V AC, 56 Frame Size, 5/8 in x 1 7/8 in, B
In Stock
$758.00
/each
Earn 758 points with this purchase
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing
LEESON General Purpose Motor: Single Phase, 3/4 hp,...
Item 44D126
$758.00
Customers Also Viewed
No related products found.
Product Details
| Catalog Page | 9 |
| Brand | LEESON |
| Manufacturer Part Number | 5KC46PN0015X |
| Frame | 56 |
| Hz | 60 Hz |
| Phase | Single |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Nameplate Horsepower @ 60 Hz | 3/4 hp |
| Ins. Class | B |
| Motor Design | Capacitor-Start |
| Full Load Amps | 11.0/5.5 A |
| Motor Service Factor | 1 |
| Nominal Voltage | 115/230V AC |
| RPM Range | 1,400 - 1,800 |
| Usable @ 208V | Not Usable at 208V, No |
| Motor Shaft Rotation | CW/CCW |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Thermal Protection | Auto |
| Mfr. Model # | 5KC46PN0015X |
| Country of Origin | Mexico (subject to change) |
| UNSPSC | 26101602 |
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 11.0/5.5 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
