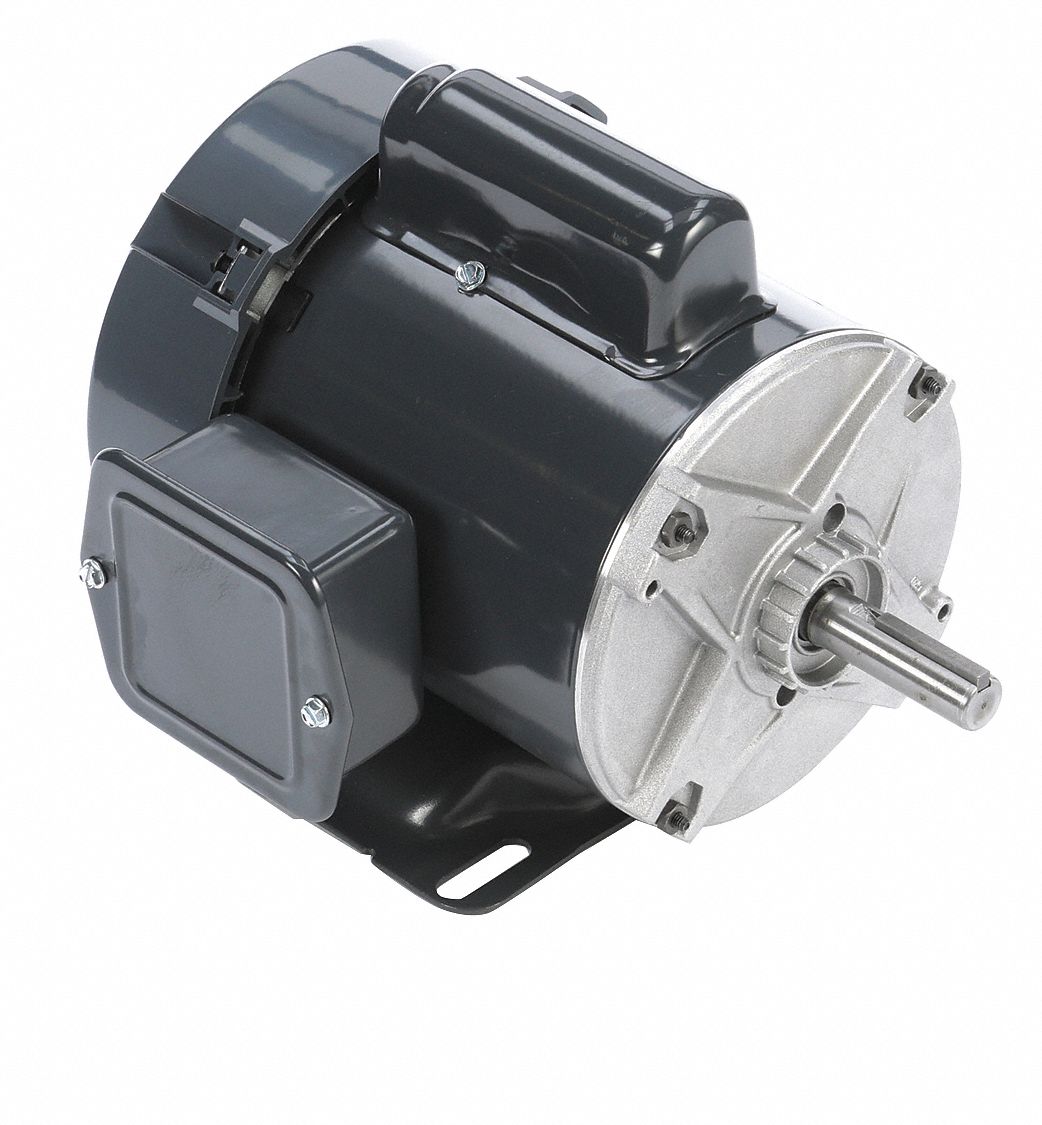

General Purpose Motor: Single Phase, 1/4 hp, 115/230V AC, 56 Frame Size, 5/8 in x 1 7/8 in, B
In Stock
$445.25
/each
Earn 445 points with this purchase
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing
LEESON General Purpose Motor: Single Phase, 1/4 hp,...
Item 44D113
$445.25
Customers Also Viewed
No related products found.
Product Details
| Catalog Page | 8 |
| Brand | LEESON |
| Hz | 60 Hz |
| Motor Mounting Type | Rigid Base |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Thermal Protection | None |
| Manufacturer Part Number | 5KC32GN19 |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Usable @ 208V | Not Usable at 208V, No |
| No. of Speeds | 1 |
| Nameplate Horsepower @ 60 Hz | 1/4 hp |
| Motor Design | Capacitor-Start |
| Nominal Voltage | 115/230V AC |
| Motor Shaft Rotation | CW/CCW |
| Full Load Amps | 5.4/2.7 A |
| RPM Range | 1,400 - 1,800 |
| Frame | 56 |
| Phase | Single |
| Mfr. Model # | 5KC32GN19 |
| Country of Origin | Mexico (subject to change) |
| UNSPSC | 26101602 |
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.4/2.7 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
