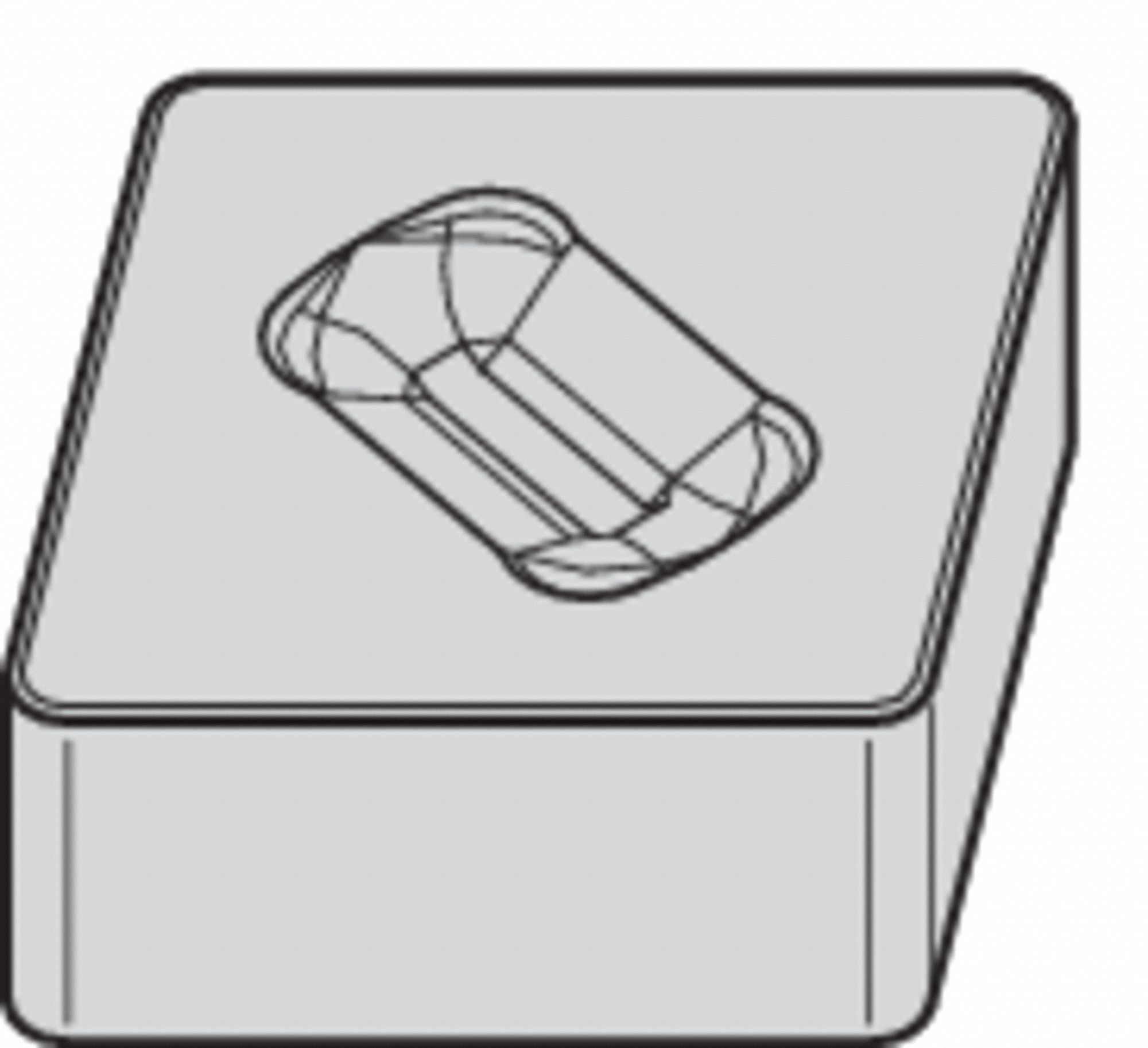

Diamond Turning Insert: CNGX Insert, Silicon Nitride Ceramic, Neutral, 5/16 in Thick, CW5025
In Stock
$34.30
/each
Earn 34 points with this purchase
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing
WIDIA Diamond Turning Insert: CNGX Insert, Silicon...
Item 433C93
$34.30
Customers Also Viewed
No related products found.
Product Details
| Brand | WIDIA |
| Insert Style | CNGX |
| ISO Number | CNGX120712T02020 |
| Material Grade - Machining | Silicon Nitride Ceramic |
| Insert Code | CNGX453 |
| Corner Radius | 3/64 in, 3 |
| Manufacturer Grade | CW5025 |
| Clearance Angle | 0 Degrees |
| Cutting Direction | Neutral |
| Coolant Fed | Non-Coolant Through |
| ANSI Code | CNGX453T0820 |
| Primary Material Application | Cast Iron |
| Number of Cutting Edges | 4 |
| Finish - Machining | Bright (Uncoated) |
| Inscribed Circle | 4, 1/2 in |
| Thickness | 5/16 in, 5 |
| Mfr. Model # | CNGX453T0820 |
| Country of Origin | USA (subject to change) |
| UNSPSC | 23171618 |
Description
Diamond Turning Insert, Inscribed Circle 1/2 in, Bright (Uncoated), ANSI Code CNGX453T0820, Clearance Angle 0 Degrees
