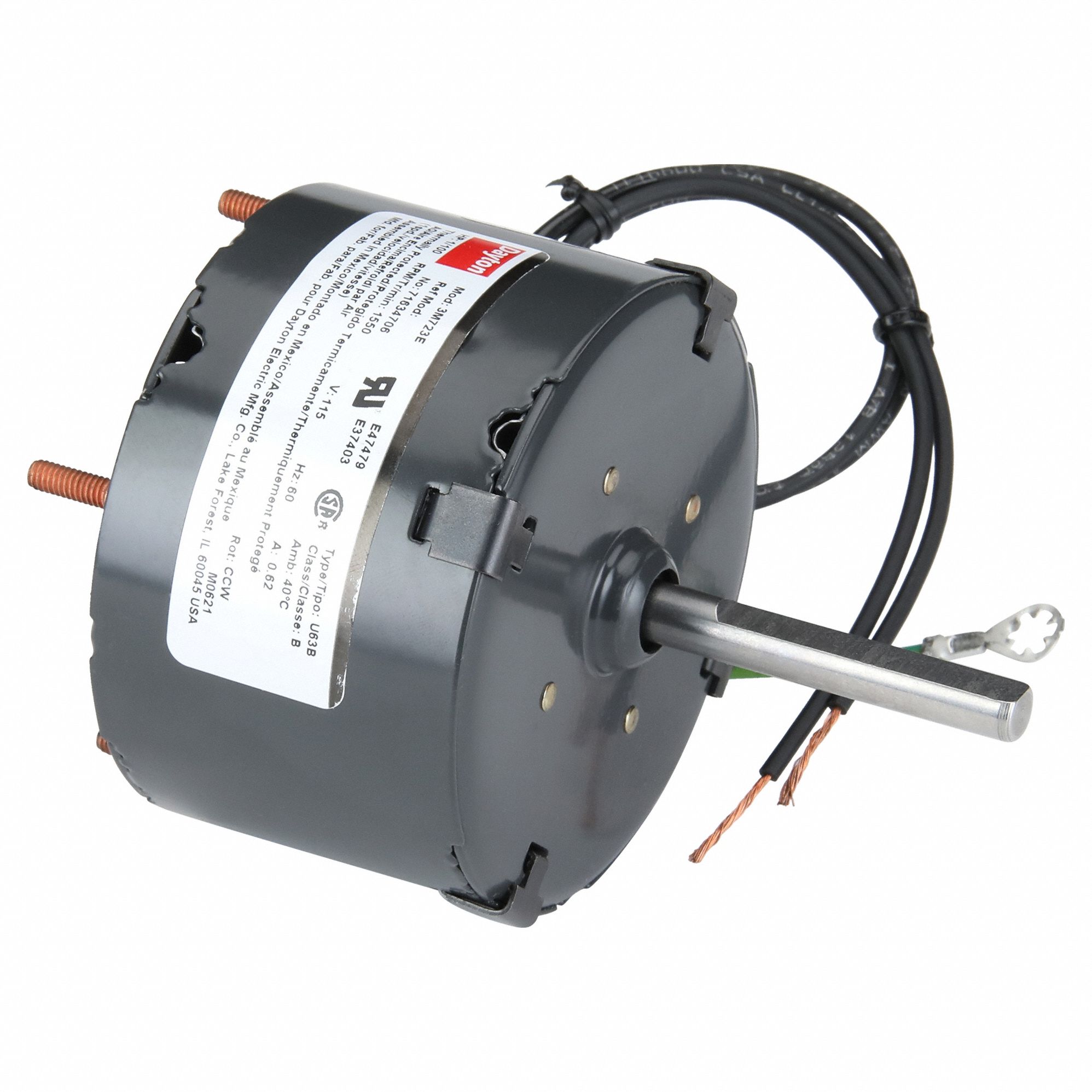

HVAC Motor: Stud, Shaded Pole, Single Phase, 1/100 hp, 1, 550 RPM, 3.3 Frame Size, 115V AC, B
In Stock
$90.60
/each
Earn 90 points with this purchase
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing
DAYTON HVAC Motor: Stud, Shaded Pole, Single Phase,...
Item 3M723
$90.60
Customers Also Viewed
No related products found.
Product Details
| Brand | DAYTON |
| Motor Service Factor | 1 |
| Motor Design | Shaded Pole |
| Phase | Single |
| Shaft Dia. | 5/16 in |
| Motor Shaft Rotation | CCWSE |
| Full Load Amps | 0.7 A |
| Voltage | 115V AC |
| Ins. Class | B |
| Usable @ 208V | Not Usable at 208V, No |
| Motor Thermal Protection | Auto |
| Horsepower | 1/100 hp |
| Motor Mounting Type | Stud |
| Nominal Voltage | 115V AC |
| Shaft Length | 2-1/4 in |
| Frame | 3.3 |
| Nameplate RPM @ 60 Hz | 1,550 RPM |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Hz | 60 Hz |
| Manufacturer Part Number | 71634706M |
| Body Dia. | 3.3 in |
| RPM Range | 1,450 - 1,800 |
| No. of Speeds | 1 |
| Mfr. Model # | 71634706M |
| Country of Origin | Mexico (subject to change) |
| UNSPSC | 26101602 |
Description
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/100 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 0.7 A Full Load Amps, 3.3 Frame, Output Watts 7.4 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
