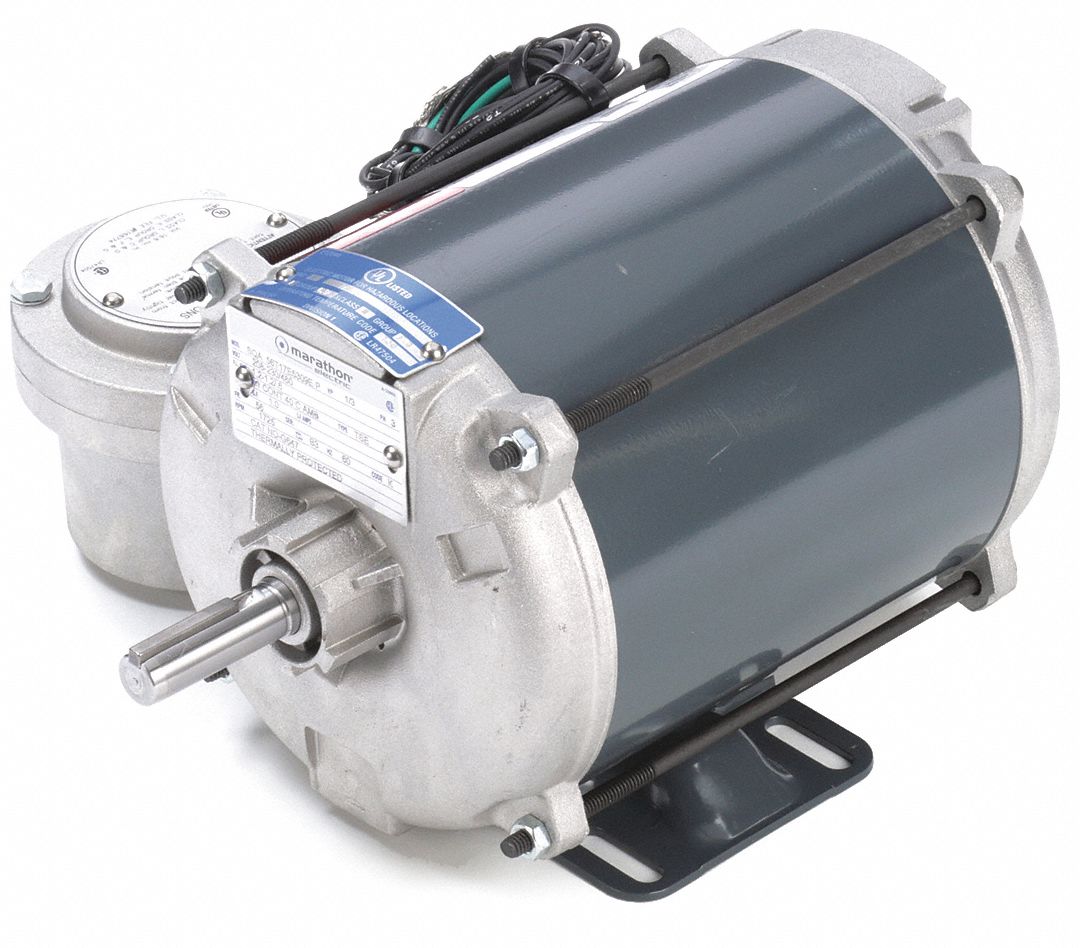

Hazardous Location Motor: Division I, Class I/Class II, Rigid Base, 1/3 hp Horsepower, Auto
In Stock
$922.00
/each
Earn 922 points with this purchase
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing
LEESON Hazardous Location Motor: Division I, Class I...
Item 39X602
$922.00
Customers Also Viewed
No related products found.
Product Details
| Brand | LEESON |
| Motor Design | Three-Phase |
| Hazardous Location Class | Class I, Class II |
| Motor Enclosure Design | Totally Enclosed Non-Ventilated |
| RPM Range | 1,701-1,800, 1,400 - 1,800 |
| Voltage | 208-230/460V AC |
| Motor Thermal Protection | Auto |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Frame | 56 |
| Motor Application | Hazardous Location |
| Motor Shaft Rotation | CW/CCW |
| No. of Speeds | 1 |
| Phase | Three |
| Voltage Compatibility | 220/460V AC, 460V AC, 230/460V AC, 208-230/460V AC, 240V AC, 208-220/440V AC, 208-240V AC, 208V AC, 208-230V AC, 220-230/460V AC, 230V AC |
| HP | 1/3 hp |
| Hz | 60 Hz |
| Nominal Voltage | 208-230/460V AC |
| Usable @ 208V | Yes, Usable at 208V |
| Hazardous Location Division | Division I |
| Ins. Class | B |
| Manufacturer Part Number | 056T17E5309 |
| Full Load Amps | 1.2-1.2/0.60 A |
| Nameplate RPM | 1,725 RPM |
| Hazardous Location Group | Group C, Group G, Group F, Group D |
| Mfr. Model # | 056T17E5309 |
| Country of Origin | Mexico (subject to change) |
| UNSPSC | 26101602 |
Description
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.2-1.2/0.60 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Non-Ventilated, Duty Cycle Continuous
