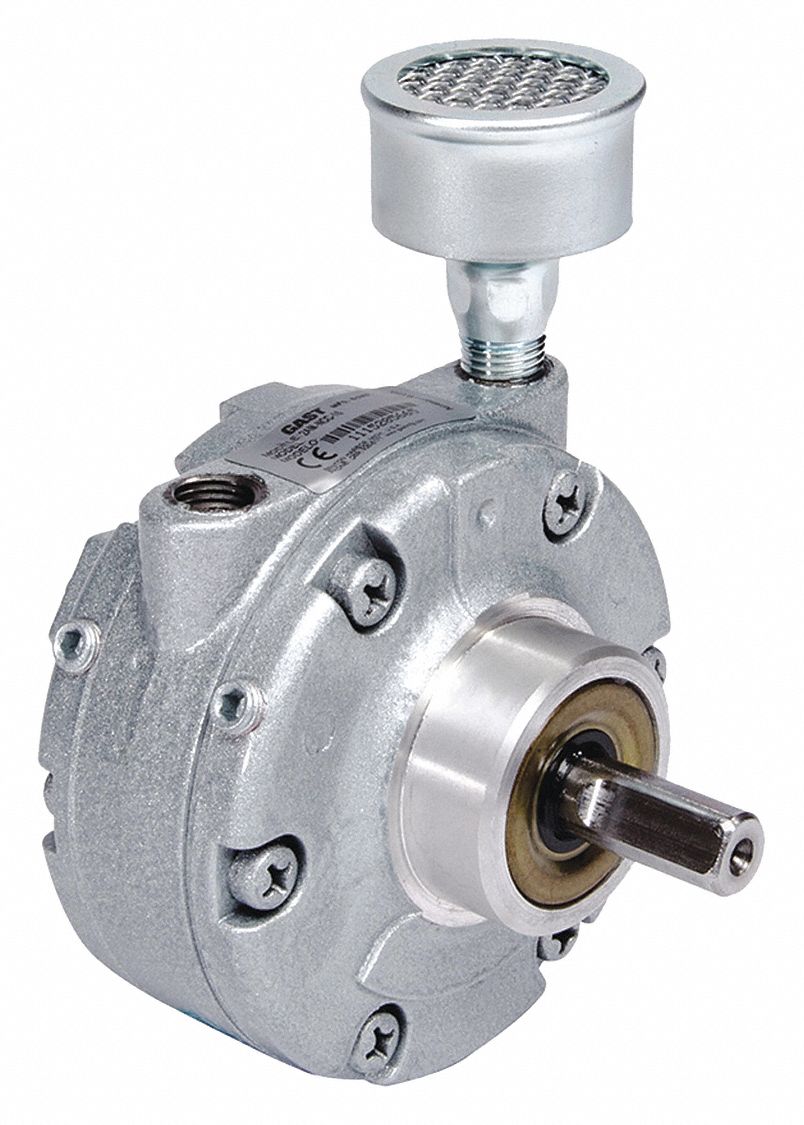

Air Motor: 0.9 hp, 19.5 in-lb Torque, 3, 000 RPM, 30 cfm, Hub, 1/4 in NPT, CCW, Cast Iron
In Stock
$483.00
/each
Earn 483 points with this purchase
Request quantity discount pricing
You're Viewing
GAST Air Motor: 0.9 hp, 19.5 in-lb Torque, 3, 000...
Item 33K708
$483.00
Customers Also Viewed
No related products found.
Product Details
| Catalog Page | 2459 |
| Brand | GAST |
| Maximum Torque | 19.5 in-lb |
| Shaft Diameter | 1/2 in |
| Should Sales be Restricted by Region? | N |
| Mount Type | Hub |
| Includes | Muffler |
| No Load Speed | 3,000 RPM |
| Storage Protection Code | A |
| Air Inlet Center to Center Distance | 2-1/2 in |
| Overall Length | 5 in |
| Housing Material Finish | Painted |
| Manufacturer Part Number | 2AM-NCC-16 |
| Maximum Ambient Temperature | 248 Degrees F |
| Maximum Operating Pressure | 100 psi |
| Starting Torque | 21 in-lb |
| Length Less Shaft | 3-41/50 in |
| California Prop 65 Cancer | N |
| Overall Height | 4 in |
| California Prop 65 Reproductive Harm | N |
| System of Measurement | Inch |
| Series | 2AM |
| Freight Class Code | 18 |
| Air Inlet Size | 1/4 in |
| Standards | ATEX |
| Product Powered by Fossil Fuel | N |
| Weight | 4.2 lb |
| Minimum Ambient Temperature | 34 Degrees F |
| Overall Width | 4 in |
| Shaft Length | 1-1/8 in |
| Housing Material | Cast Iron |
| Maximum Flow Rate | 30 cfm |
| Safety Data Sheet (SDS) Applicable? | N |
| Mounting Orientation | Any Angle |
| Number of Vanes | 4 |
| Output Shaft Type | D-Shaft |
| Rotation | CCW |
| Output Power @ Maximum Speed | 0.9 hp |
| Ozone Depleting Substance | N |
| Minimum Flow Rate | 1 cfm |
| RoHS - Restricted Use of Hazardous Substances Directive (RoHS) | N |
| Manufacturers Warranty Length | 1 yr |
| Air Inlet Type | NPT |
| Is this a Hazardous Material Product? | N |
| Air Consumption | 30 cfm |
| Outside Diameter | 4 in |
| Air Inlet Port | 1/4 in NPT |
| Mfr. Model # | 2AM-NCC-16 |
Description
Stock 40/Skid 2Am-Ncc-16 Air Motor
