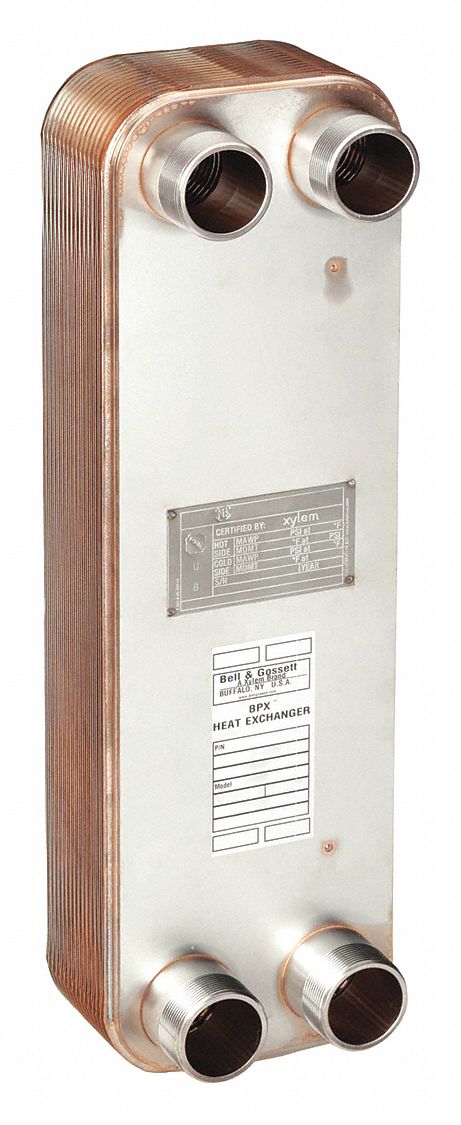

Heat Exchanger: 1, 100, 000 BtuH Water / 190, 875 BtuH Oil, 225 gpm, 29.76 sq ft, Copper Braze
In Stock
$3,062.00
/each
Earn 3062 points with this purchase
Request quantity discount pricing
You're Viewing
BELL & GOSSETT Heat Exchanger: 1, 100, 000 BtuH Water / 190,...
Item 2NXT7
$3,062.00
Customers Also Viewed
No related products found.
Product Details
| Catalog Page | 2910 |
| Brand | BELL & GOSSETT |
| Fluid Compatibility | Oil, Water, Steam, Refrigerant, Glycol |
| Pipe Connection Gender | Male |
| Should Sales be Restricted by Region? | N |
| Overall HxWxD | 24-1/4 in x 7-1/2 in x 3-7/8 in |
| Maximum Pressure Rating | 435 psig |
| Brazing Material | Copper |
| Product Powered by Fossil Fuel | N |
| Connection Material | Stainless Steel |
| California Prop 65 Cancer | N |
| Overall Height | 24-1/4 in |
| Water Heat Dissipation Capacity | 1,100,000 BtuH |
| Maximum Operating Temperature | 450 Degrees F |
| RoHS - Restricted Use of Hazardous Substances Directive (RoHS) | N |
| Oil Heat Dissipation Capacity Range | 100,001 to 500,000 BtuH |
| Channel Plate Material | Stainless Steel |
| Heat Exchanger Type | Braze Plate |
| Overall Width | 7-1/2 in |
| Ozone Depleting Substance | N |
| Flow Capacity | 225 gpm |
| Pipe Connection | 2 in Male NPT |
| Number of Plates | 30 |
| Pipe Connection Type | NPT |
| Surface Area per Plate | 1.06 sq ft |
| Pipe Connection Size | 2 in |
| Application | Refrigerant Evaporators and Condensers, Liquid and Oil Cooling, Residential Hydronic Systems |
| Heat Dissipation Capacity | 1,100,000 BtuH Water / 190,875 BtuH Oil |
| Minimum Operating Temperature | -310 Degrees F |
| Freight Class Code | 20 |
| Overall Depth | 3-7/8 in |
| Total Surface Area | 29.76 sq ft |
| Operating Temperature Range | -310 Degrees F to 450 Degrees F |
| Safety Data Sheet (SDS) Applicable? | N |
| Oil Heat Dissipation Capacity | 190,875 BtuH |
| Water Heat Dissipation Capacity Range | 1,000,001 to 2,000,000 BtuH |
| Is this a Hazardous Material Product? | N |
| Manufacturer Part Number | BP422-30-LCA |
| Cover Plate Material | Stainless Steel |
| California Prop 65 Reproductive Harm | N |
| Storage Protection Code | A |
| Mfr. Model # | BP422-30-LCA |
Description
Heat Exch, Braze Plate, 1, 100, 000 BtuH
