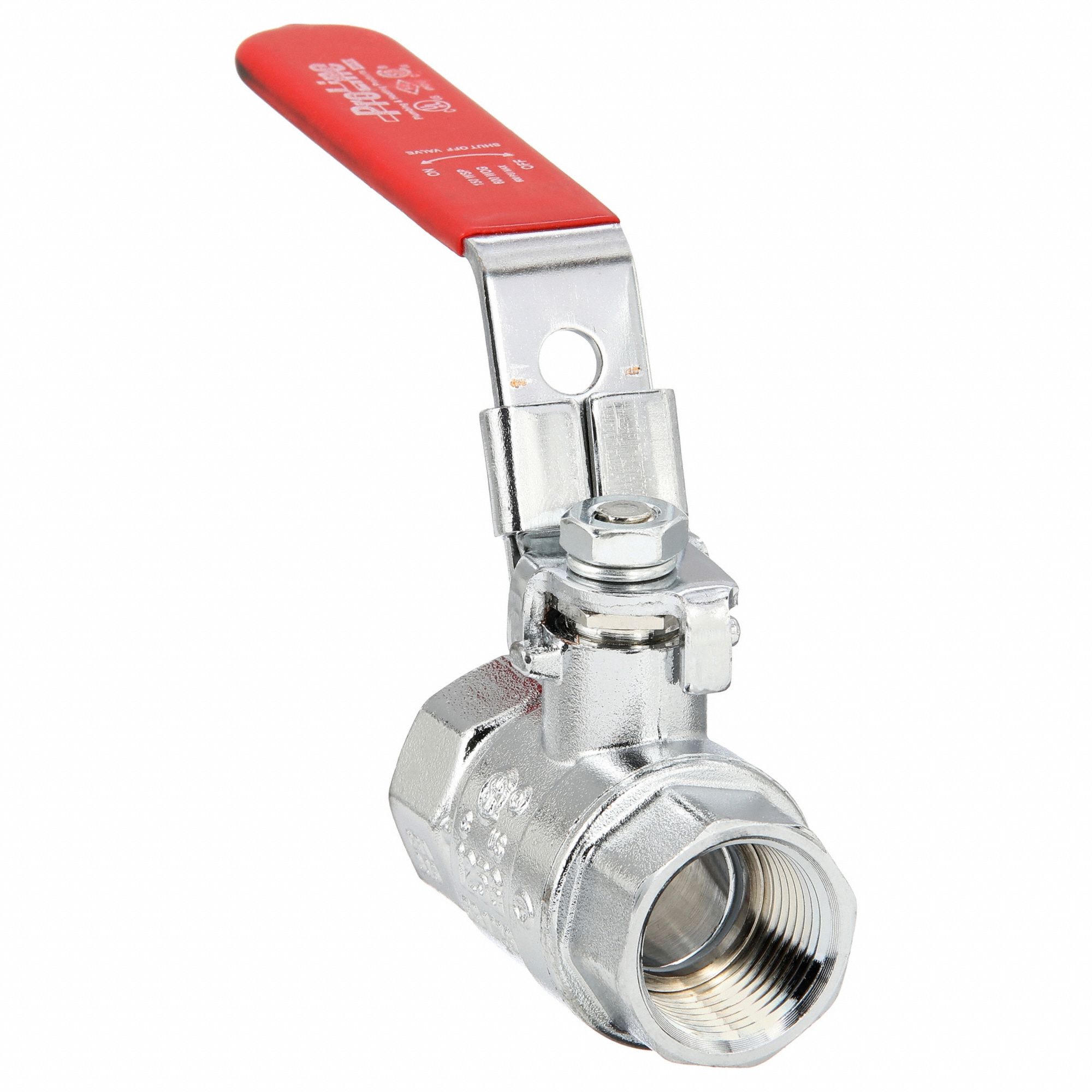

Manual Two-Way Ball Valve: 3/4 in, Chrome-Plated Brass, Straight, FIP x FIP, Lever
In Stock
$37.35
/each
Earn 37 points with this purchase
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing
APPROVED VENDOR Manual Two-Way Ball Valve: 3/4 in, Chrome-Pla...
Item 1PYV2
$37.35
Customers Also Viewed
No related products found.
Product Details
| Brand | APPROVED VENDOR |
| Media Temp. Range | -20 Degrees F to 300 Degrees F |
| Maximum Pressure - Operating | 600 psi |
| Maximum Pressure - Combustible Gas | Not Rated |
| Seat Material | PTFE |
| Seal Material | PTFE |
| Stem Material | Brass |
| Handle Material | 304 Stainless Steel, PVC |
| Vented Ball Valve | Non-Vented |
| 3-A Standard Compliance | Not Rated |
| Overall Length | 5.54 in |
| Color - Valve Handle | Red |
| For Media | Water, Steam, Combustible Gases |
| Ball Material | Chrome-Plated Brass |
| Coefficient of Volume (Cv) | 21.417 |
| Connection Type | FIP x FIP |
| Standards | YQNZ, ANSI Z21.15/CSA 9.1, YRPV, FM 1140, MHKZ, ASME B16.44, YSDT, YRBX, ASME B16.33 |
| Body Material | Chrome-Plated Brass |
| Vacuum Service Rating | -29.92 in Hg |
| Nominal Valve Size | 3/4 in |
| Valve Ways | 2-Way |
| Maximum Pressure - Steam | 600 psi |
| Handle | Locking Lever |
| Ball Port Style | Full Port |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Mfr. Model # | 107-824-CL |
| Country of Origin | China (subject to change) |
| UNSPSC | 40141607 |
Description
Manual Two-Way Ball Valve, Body Material Chrome-Plated Brass, For Media Combustible Gases, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 3/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 600 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.92 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port
