Mounting Hardware for Compact Cylinders
65 products
Deep category from CSV: Mounting Hardware for Compact Cylinders
Products by Family
Mounting Bracket
11 products available
| Image | Product Name | SKU | Brand | Price | Availability |
|---|---|---|---|---|---|
|
|
Air Cylinder Mounting Hardware: Clevis, Fits 16 mm Bore Dia, CQ-D016, CQ2-Z
Air Cylinder Mounting Hardware, Mount Type Clevis, Mount Location Rear, For Bore...
|
KD-1277495
Mfr. #: CQ-D016
|
SMC | $7.26 | In Stock |
|
|
Double Clevis: Clevis, Fits 32 mm Bore Dia, CQ-D032, CQ2-Z
Double Clevis, Mount Type Clevis, Mount Location Rear, For Bore Diameter 32 mm,...
|
KD-1277490
Mfr. #: CQ-D032
|
SMC | $10.14 | In Stock |
|
|
Double Clevis: Clevis, Fits 80 mm Bore Dia, CQ-D080, CQ2-Z
Double Clevis, Mount Type Clevis, Mount Location Rear, For Bore Diameter 80 mm,...
|
KD-1277489
Mfr. #: CQ-D080
|
SMC | $26.75 | In Stock |
|
Flange Bracket: Flange, Fits 16 mm Bore Dia, CQ-F016, CQ2-Z
Flange Bracket, Mount Type Flange, For Bore Diameter 16 mm, Overall Length 55 mm...
|
KD-1277507
Mfr. #: CQ-F016
|
SMC | $7.84 | In Stock |
|
|
Flange Bracket: Flange, Fits 32 mm Bore Dia, CQ-F032, CQ2-Z
Flange Bracket, Mount Type Flange, For Bore Diameter 32 mm, Overall Length 65 mm...
|
KD-1277510
Mfr. #: CQ-F032
|
SMC | $10.29 | In Stock |
|
|
Flange Bracket: Flange, Fits 80 mm Bore Dia, CQ-F080, CQ2-Z
Flange Bracket, Mount Type Flange, For Bore Diameter 80 mm, Overall Length 134 m...
|
KD-1277497
Mfr. #: CQ-F080
|
SMC | $28.50 | In Stock |
|
Foot Bracket: Foot, Fits 16 mm Bore Dia, CQ-LZ16, CQ2-Z
Foot Bracket, Mount Type Foot, For Bore Diameter 16 mm, Overall Length 44 mm, Ov...
|
KD-1277561
Mfr. #: CQ-LZ16
|
SMC | $14.71 | In Stock |
|
Foot Bracket: Foot, Fits 32 mm Bore Dia, CQ-L032, CQ2-Z
Foot Bracket, Mount Type Foot, For Bore Diameter 32 mm, Overall Length 71 mm, Ov...
|
KD-1277563
Mfr. #: CQ-L032
|
SMC | $10.29 | In Stock |
|
|
Foot Bracket: Foot, Fits 80 mm Bore Dia, CQ-L080, CQ2-Z
Foot Bracket, Mount Type Foot, For Bore Diameter 80 mm, Overall Length 140 mm, O...
|
KD-1277564
Mfr. #: CQ-L080
|
SMC | $28.85 | In Stock |
|
Mounting Bracket: Clevis, Fits 20 mm Bore Dia, CQS-D020, CQS
Mounting Bracket, Mount Type Clevis, For Bore Diameter 20 mm, Compatible with Se...
|
KD-1277487
Mfr. #: CQS-D020
|
SMC | $14.73 | In Stock |
|
Mounting Bracket: Foot, Fits 20 mm Bore Dia, CQS-L020, CQS
Mounting Bracket, Mount Type Foot, For Bore Diameter 20 mm, Compatible with Seri...
|
KD-1277562
Mfr. #: CQS-L020
|
SMC | $7.40 | In Stock |
Clevis Bracket
2 products available
| Image | Product Name | SKU | Brand | Price | Availability |
|---|---|---|---|---|---|
|
|
Cylinder Mounting Hardware: Clevis, Fits 1 1/2 in_2 in_2 1/2 in Bore Dia, L073820024, LP/LPM
Cylinder Mounting Hardware, Mount Type Clevis, For Bore Diameter 1 1/2 in, 2 in,...
|
KD-1237695
Mfr. #: L073820024
|
PARKER | $57.85 | In Stock |
|
|
Cylinder Mounting Hardware: Clevis, Fits 9/16 in_3/4 in_1 1/8 in Bore Dia, L073820012, LP/LPM
Cylinder Mounting Hardware, Mount Type Clevis, For Bore Diameter 9/16 in, 3/4 in...
|
KD-1237694
Mfr. #: L073820012
|
PARKER | $41.75 | In Stock |
Clevis Pin
2 products available
| Image | Product Name | SKU | Brand | Price | Availability |
|---|---|---|---|---|---|
|
|
Cylinder Mounting Hardware: Clevis, L073830012, LP/LPM
Cylinder Mounting Hardware, Mount Type Clevis, Compatible with Brand Parker, Com...
|
KD-1237696
Mfr. #: L073830012
|
PARKER | $7.28 | In Stock |
|
|
Cylinder Mounting Hardware: Clevis, L073830024, LP/LPM
Cylinder Mounting Hardware, Mount Type Clevis, Compatible with Brand Parker, Com...
|
KD-1237693
Mfr. #: L073830024
|
PARKER | $7.88 | In Stock |
Rod Eye
6 products available
| Image | Product Name | SKU | Brand | Price | Availability |
|---|---|---|---|---|---|
|
|
Cylinder Mounting Hardware: Rod Eye, 3/4"-16 Thread Size, 0961000075
Cylinder Mounting Hardware, Mount Type Rod Eye, Overall Width 1 5/16 in, Overall...
|
KD-1237381
Mfr. #: 0961000075
|
PARKER | $243.75 | In Stock |
|
|
Cylinder Mounting Hardware: Rod Eye, Fits 1 1/2 in Bore Dia, 3/8"-24 Thread Size, L073810024
Cylinder Mounting Hardware, Mount Type Rod Eye, For Bore Diameter 1 1/2 in, Over...
|
KD-1237701
Mfr. #: L073810024
|
PARKER | $29.40 | In Stock |
|
|
Cylinder Mounting Hardware: Rod Eye, Fits 1 1/8 in Bore Dia, 5/16"-24 Thread Size, L073810020
Cylinder Mounting Hardware, Mount Type Rod Eye, For Bore Diameter 1 1/8 in, Over...
|
KD-1237711
Mfr. #: L073810020
|
PARKER | $27.25 | In Stock |
|
|
Cylinder Mounting Hardware: Rod Eye, Fits 2 in_2 1/2 in Bore Dia, 1/2"-20 Thread Size, LP/LPM
Cylinder Mounting Hardware, Mount Type Rod Eye, For Bore Diameter 2 in, 2 1/2 in...
|
KD-1237706
Mfr. #: L073810032
|
PARKER | $31.10 | In Stock |
|
|
Cylinder Mounting Hardware: Rod Eye, Fits 3 in Bore Dia, 5/8"-18 Thread Size, L073810040
Cylinder Mounting Hardware, Mount Type Rod Eye, For Bore Diameter 3 in, Overall...
|
KD-1237717
Mfr. #: L073810040
|
PARKER | $49.85 | In Stock |
|
|
Cylinder Mounting Hardware: Rod Eye, Fits 4 in Bore Dia, 3/4"-16 Thread Size, L073810048
Cylinder Mounting Hardware, Mount Type Rod Eye, For Bore Diameter 4 in, Overall...
|
KD-1237716
Mfr. #: L073810048
|
PARKER | $38.70 | In Stock |
Rod Eye Knuckle
4 products available
| Image | Product Name | SKU | Brand | Price | Availability |
|---|---|---|---|---|---|
|
|
Cylinder Mounting Hardware: Rod Eye, Fits 1 1/2 in Bore Dia, 7/16"-20 Thread Size, 1458040044
Cylinder Mounting Hardware, Mount Type Rod Eye, For Bore Diameter 1 1/2 in, Over...
|
KD-1237659
Mfr. #: 1458040044
|
PARKER | $36.75 | In Stock |
|
|
Cylinder Mounting Hardware: Rod Eye, Fits 2 1/2 in Bore Dia, 3/4"-16 Thread Size, 1458040075
Cylinder Mounting Hardware, Mount Type Rod Eye, For Bore Diameter 2 1/2 in, Over...
|
KD-1237655
Mfr. #: 1458040075
|
PARKER | $50.65 | In Stock |
|
|
Cylinder Mounting Hardware: Rod Eye, Fits 3 1/4 in Bore Dia, 7/8"-14 Thread Size, 1458040088
Cylinder Mounting Hardware, Mount Type Rod Eye, For Bore Diameter 3 1/4 in, Over...
|
KD-1237652
Mfr. #: 1458040088
|
PARKER | $56.85 | In Stock |
|
|
Cylinder Mounting Hardware: Rod Eye, Fits 4 in Bore Dia, 1"-14 Thread Size, 1458040100, 4MA
Cylinder Mounting Hardware, Mount Type Rod Eye, For Bore Diameter 4 in, Overall...
|
KD-1237653
Mfr. #: 1458040100
|
PARKER | $82.60 | In Stock |
Swivel Rod Eye
1 product available
| Image | Product Name | SKU | Brand | Price | Availability |
|---|---|---|---|---|---|
|
|
Cylinder Mounting Hardware: Rod Eye, Fits 32 mm Bore Dia, M10 x 1.25 Thread Size, P1C-4KRS
Cylinder Mounting Hardware, Mount Type Rod Eye, For Bore Diameter 32 mm, Body Ma...
|
KD-1237763
Mfr. #: P1C-4KRS
|
PARKER | $43.05 | In Stock |
Double Clevis
6 products available
| Image | Product Name | SKU | Brand | Price | Availability |
|---|---|---|---|---|---|
|
|
Double Clevis: Clevis, Fits 100 mm Bore Dia, D5100, C95/C96
Double Clevis, Mount Type Clevis, For Bore Diameter 100 mm, Body Material Steel,...
|
KD-1277531
Mfr. #: D5100
|
SMC | $69.20 | In Stock |
|
Double Clevis: Clevis, Fits 32 mm Bore Dia, D5032, C95/C96
Double Clevis, Mount Type Clevis, Mount Location Rear, For Bore Diameter 32 mm,...
|
KD-1277488
Mfr. #: D5032
|
SMC | $24.33 | In Stock | |
|
Double Clevis: Clevis, Fits 40 mm Bore Dia, D5040, C95/C96
Double Clevis, Mount Type Clevis, Mount Location Rear, For Bore Diameter 40 mm,...
|
KD-1277545
Mfr. #: D5040
|
SMC | $28.90 | In Stock |
|
Double Clevis: Clevis, Fits 50 mm Bore Dia, D5050, C95/C96
Double Clevis, Mount Type Clevis, For Bore Diameter 50 mm, Body Material Steel,...
|
KD-1277523
Mfr. #: D5050
|
SMC | $34.90 | In Stock |
|
Double Clevis: Clevis, Fits 63 mm Bore Dia, D5063, C95/C96
Double Clevis, Mount Type Clevis, For Bore Diameter 63 mm, Body Material Steel,...
|
KD-1277528
Mfr. #: D5063
|
SMC | $65.40 | In Stock |
|
Double Clevis: Clevis, Fits 80 mm Bore Dia, D5080, C95/C96
Double Clevis, Mount Type Clevis, For Bore Diameter 80 mm, Body Material Steel,...
|
KD-1277525
Mfr. #: D5080
|
SMC | $56.85 | In Stock |
Double Rod Clevis
6 products available
| Image | Product Name | SKU | Brand | Price | Availability |
|---|---|---|---|---|---|
|
|
Double Rod Clevis: Clevis, Fits 100 mm Bore Dia, M26 Thread Size, Y-G10SUS, CG/CG3
Double Rod Clevis, Mount Type Clevis, For Bore Diameter 100 mm, Body Material St...
|
KD-1277534
Mfr. #: Y-G10SUS
|
SMC | $87.70 | In Stock |
|
Double Rod Clevis: Clevis, Fits 20 mm Bore Dia, M8 Thread Size, Y-G02SUS, CG/CG3
Double Rod Clevis, Mount Type Clevis, For Bore Diameter 20 mm, Body Material Sta...
|
KD-1277527
Mfr. #: Y-G02SUS
|
SMC | $17.59 | In Stock |
|
|
Double Rod Clevis: Clevis, Fits 32 mm Bore Dia, M10 Thread Size, Y-G03SUS, CG/CG3
Double Rod Clevis, Mount Type Clevis, For Bore Diameter 32 mm, Body Material Sta...
|
KD-1277526
Mfr. #: Y-G03SUS
|
SMC | $17.59 | In Stock |
|
Double Rod Clevis: Clevis, Fits 40 mm Bore Dia, M14 Thread Size, Y-G04SUS, CG/CG3
Double Rod Clevis, Mount Type Clevis, For Bore Diameter 40 mm, Body Material Sta...
|
KD-1277530
Mfr. #: Y-G04SUS
|
SMC | $41.50 | In Stock |
|
Double Rod Clevis: Clevis, Fits 50 mm_63 mm Bore Dia, M18 Thread Size, Y-G05SUS, CG/CG3
Double Rod Clevis, Mount Type Clevis, For Bore Diameter 50 mm, 63 mm, Body Mater...
|
KD-1277520
Mfr. #: Y-G05SUS
|
SMC | $41.50 | In Stock |
|
Double Rod Clevis: Clevis, Fits 80 mm Bore Dia, M22 Thread Size, Y-G08SUS, CG/CG3
Double Rod Clevis, Mount Type Clevis, For Bore Diameter 80 mm, Body Material Sta...
|
KD-1277548
Mfr. #: Y-G08SUS
|
SMC | $64.55 | In Stock |
Foot Bracket
1 product available
| Image | Product Name | SKU | Brand | Price | Availability |
|---|---|---|---|---|---|
|
|
Foot Bracket: P411020-5
Foot Bracket, Compatible with Manufacturer Model Number CRB1BW, Product Type Foo...
|
KD-1277557
Mfr. #: P411020-5
|
SMC | $25.40 | In Stock |
Jam Nut
3 products available
| Image | Product Name | SKU | Brand | Price | Availability |
|---|---|---|---|---|---|
|
|
Jam Nut: Threaded Nut, Fits 1 1/16 in Bore Dia, 5/16"-24 Thread Size, L073800300, P1M
Jam Nut, Mount Type Threaded Nut, For Bore Diameter 1 1/16 in, Body Material Ste...
|
KD-1250562
Mfr. #: L073800300
|
PARKER | $41.85 | In Stock |
|
|
Jam Nut: Threaded Nut, Fits 5/16 in Bore Dia, 1/4"-28 Thread Size, L073800200, P1M
Cylinder Mount
|
KD-1250553
Mfr. #: L073800200
|
PARKER | $5.00 | In Stock |
|
|
Jam Nut: Threaded Nut, Fits 7/16 in_9/16 in Bore Dia, #10-32 Thread Size, L073800100, P1M
Jam Nut, Mount Type Threaded Nut, For Bore Diameter 7/16 in, 9/16 in, Body Mater...
|
KD-1250550
Mfr. #: L073800100
|
PARKER | $41.85 | In Stock |
Knuckle Joint
12 products available
| Image | Product Name | SKU | Brand | Price | Availability |
|---|---|---|---|---|---|
|
|
Knuckle Joint: Clevis, Fits 0.79 mm Bore Dia, M18 x 1.5 Thread Size, Y-05M, MB
Knuckle Joint, Mount Type Clevis, For Bore Diameter 0.79 mm, Compatible with Ser...
|
KD-1277536
Mfr. #: Y-05M
|
SMC | $47.70 | In Stock |
|
Knuckle Joint: Fits 100 mm Bore Dia, M26 x 1.5 Thread Size, Y-10D, CA2
Knuckle Joint, For Bore Diameter 100 mm, Body Material Cast Iron, Overall Length...
|
KD-1277542
Mfr. #: Y-10D
|
SMC | $63.05 | In Stock |
|

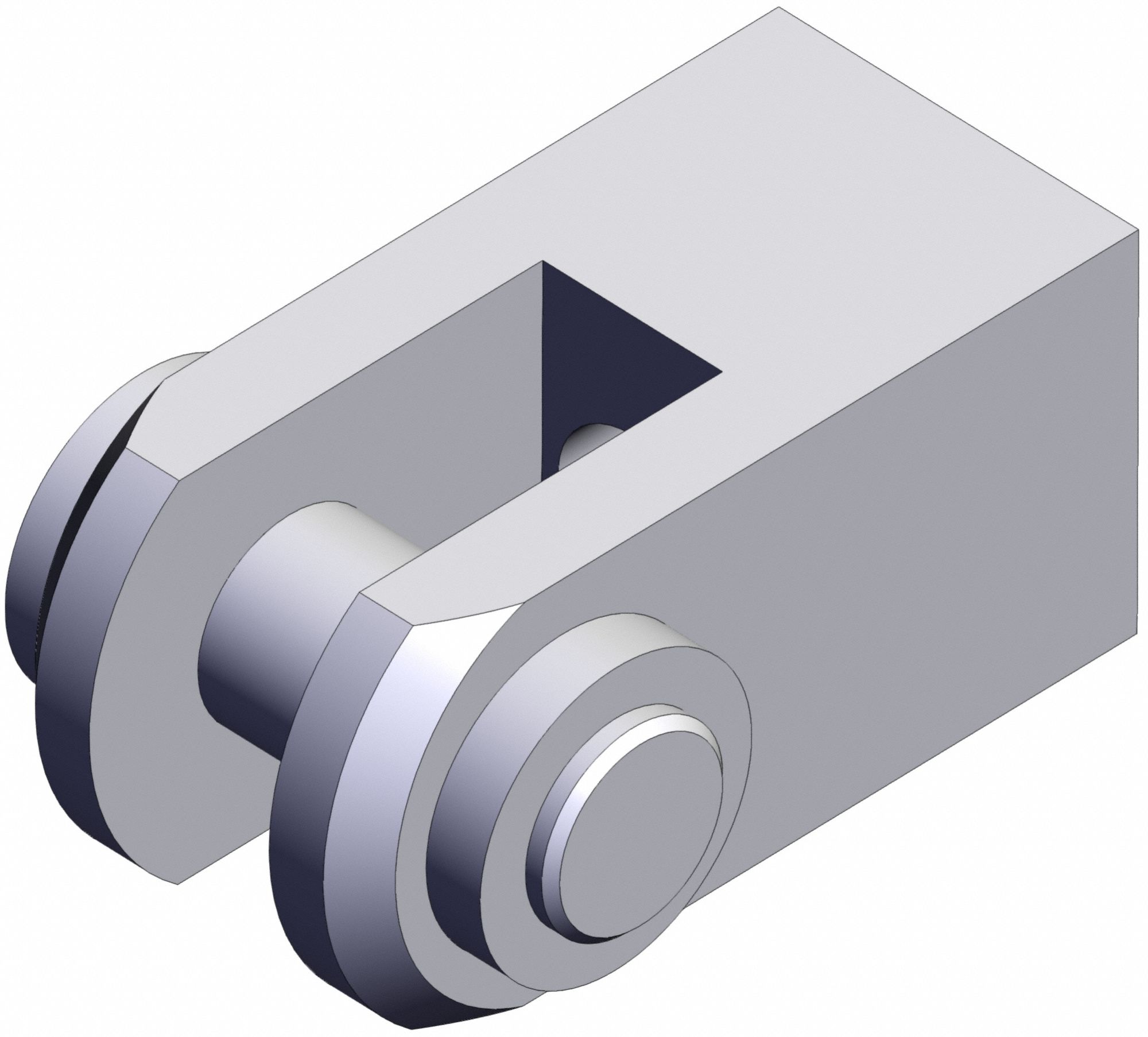

Knuckle Joint: Fits 12 mm Bore Dia, M5 x 0.8 Thread Size, Y-G012, CQ2/CQ2-Z
Knuckle Joint, For Bore Diameter 12 mm, Body Material Carbon Steel; Cast Iron, O...
|
KD-1277539
Mfr. #: Y-G012
|
SMC | $4.45 | In Stock |
|

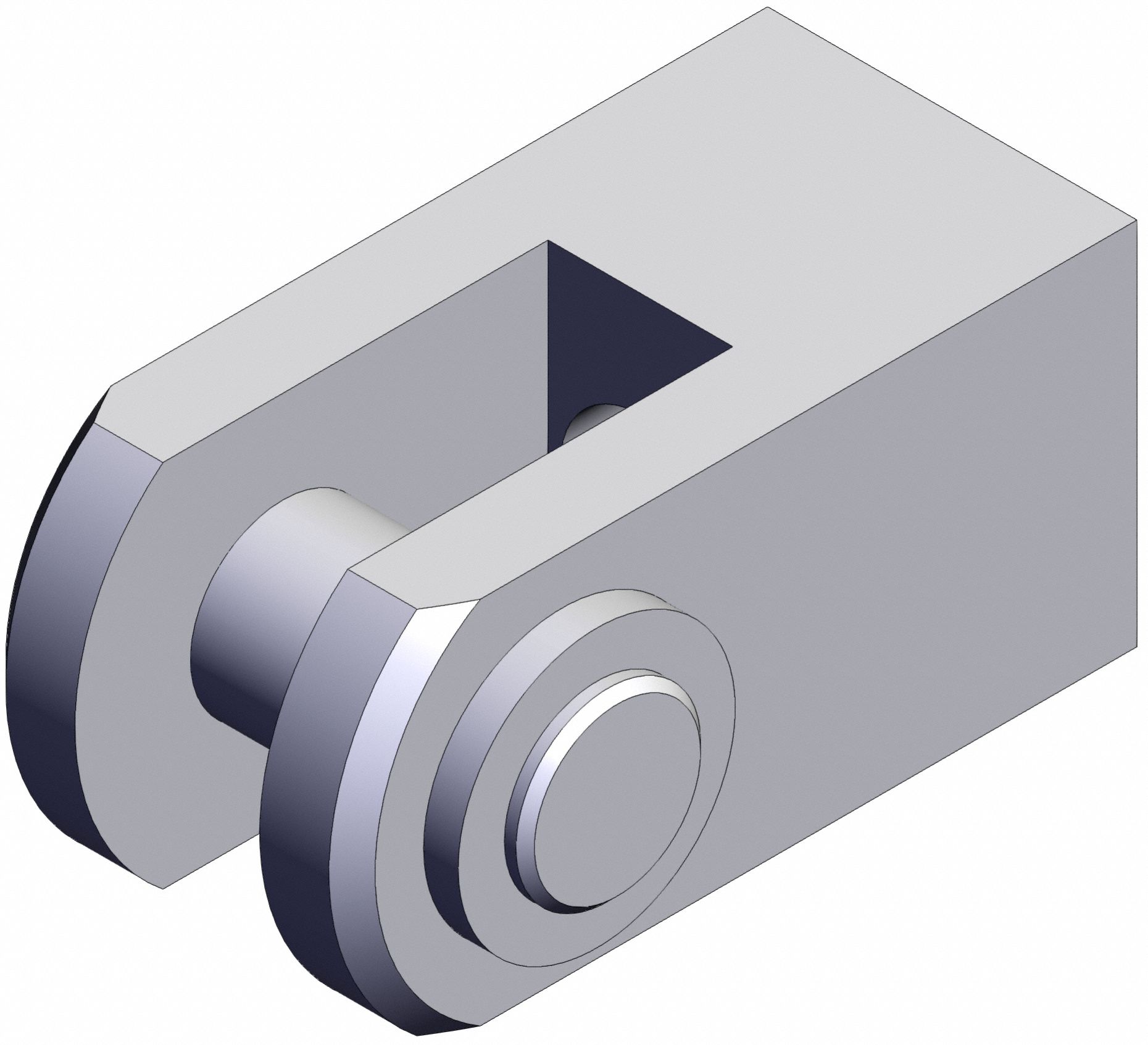

Knuckle Joint: Fits 20 mm Bore Dia, M8 x 1.25 Thread Size, Y-G02, CQ2/CQ2-Z
Knuckle Joint, For Bore Diameter 20 mm, Body Material Carbon Steel; Cast Iron, O...
|
KD-1339625
Mfr. #: Y-G02
|
SMC | $6.91 | In Stock |
|

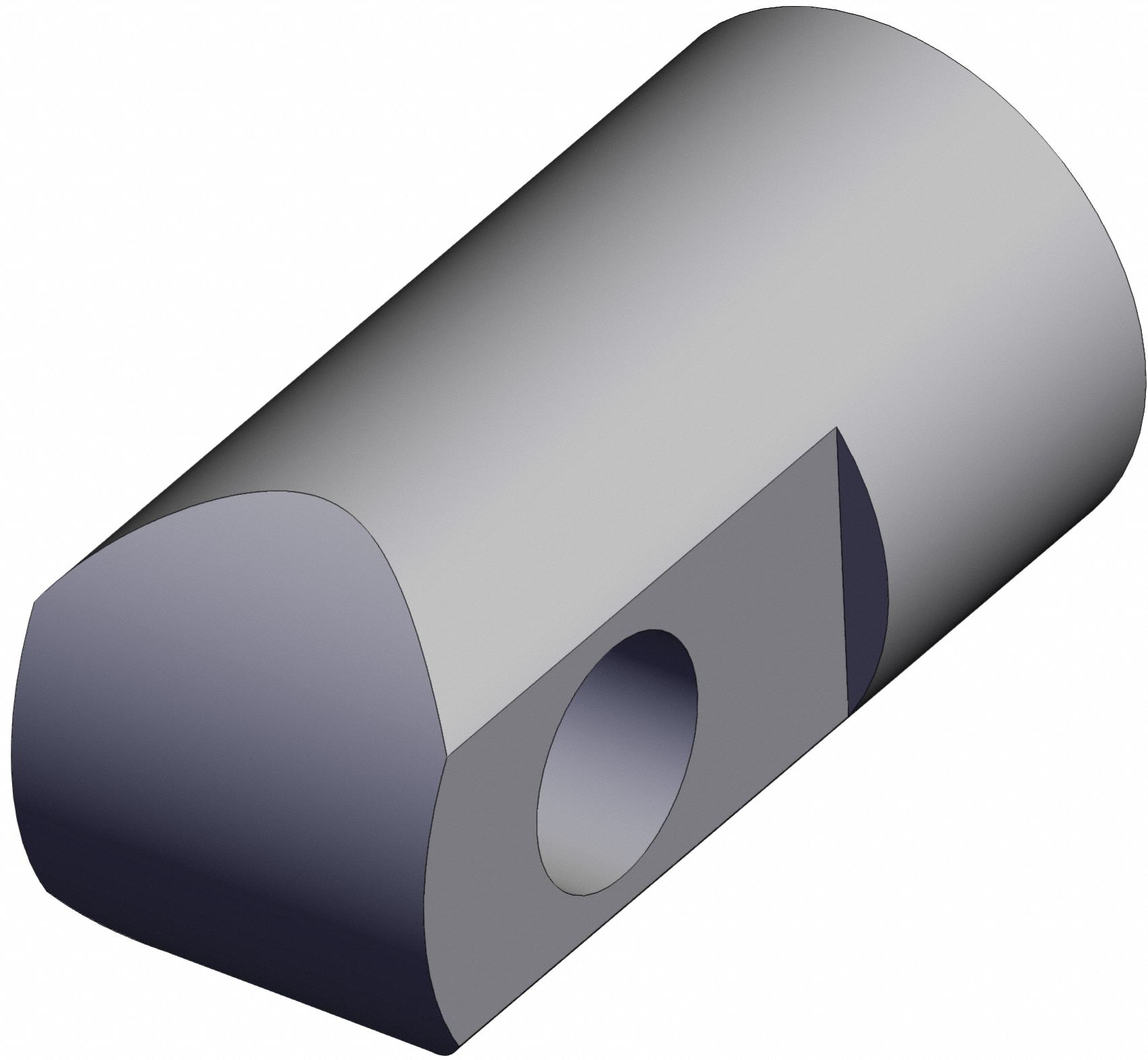

Knuckle Joint: Fits 32 mm_40 mm Bore Dia, M14 x 1.5 Thread Size, I-G04, CQ2/CQ2-Z
Knuckle Joint, For Bore Diameter 32 mm, 40 mm, Body Material Carbon Steel; Cast...
|
KD-1277515
Mfr. #: I-G04
|
SMC | $12.73 | In Stock |
|
Knuckle Joint: Fits 32 mm_40 mm Bore Dia, M14 x 1.5 Thread Size, Y-G04, CQ2/CQ2-Z
Knuckle Joint, For Bore Diameter 32 mm, 40 mm, Body Material Carbon Steel; Cast...
|
KD-1339621
Mfr. #: Y-G04
|
SMC | $11.82 | In Stock |
|
Knuckle Joint: Fits 40 mm Bore Dia, M14 x 1.5 Thread Size, Y-04D, CA2
Knuckle Joint, For Bore Diameter 40 mm, Body Material Cast Iron, Overall Length...
|
KD-1277518
Mfr. #: Y-04D
|
SMC | $16.85 | In Stock |
|
|
Knuckle Joint: Fits 50 mm_63 mm Bore Dia, M18 x 1.5 Thread Size, Y-05D, CA2
Knuckle Joint, For Bore Diameter 50 mm, 63 mm, Body Material Cast Iron, Overall...
|
KD-1339631
Mfr. #: Y-05D
|
SMC | $17.31 | In Stock |
|
Knuckle Joint: Fits 50 mm_63 mm Bore Dia, M18 x 1.5 Thread Size, Y-G05, CLQ
Knuckle Joint, For Bore Diameter 50 mm, 63 mm, Body Material Cast Iron, Overall...
|
KD-1339627
Mfr. #: Y-G05
|
SMC | $14.72 | In Stock |
|
Knuckle Joint: Fits 80 mm Bore Dia, M22 x 1.5 Thread Size, I-G08, CQ2/CQ2-Z
Knuckle Joint, For Bore Diameter 80 mm, Body Material Carbon Steel; Cast Iron, O...
|
KD-1277498
Mfr. #: I-G08
|
SMC | $18.33 | In Stock |
|
Knuckle Joint: Fits 80 mm Bore Dia, M22 x 1.5 Thread Size, Y-08D, CA2
Knuckle Joint, For Bore Diameter 80 mm, Body Material Cast Iron, Overall Length...
|
KD-1277550
Mfr. #: Y-08D
|
SMC | $51.50 | In Stock |
|
Knuckle Joint: Fits 80 mm Bore Dia, M22 x 1.5 Thread Size, Y-G08, CQ2/CQ2-Z
Knuckle Joint, For Bore Diameter 80 mm, Body Material Carbon Steel; Cast Iron, O...
|
KD-1339629
Mfr. #: Y-G08
|
SMC | $23.88 | In Stock |
Knuckle Pin
2 products available
| Image | Product Name | SKU | Brand | Price | Availability |
|---|---|---|---|---|---|
|
|
Knuckle Pin: Fits 50 mm_63 mm Bore Dia, IY-G05, CQ2/CQ2-Z
Knuckle Pin, For Bore Diameter 50 mm, 63 mm, Body Material Carbon Steel, Overall...
|
KD-1339639
Mfr. #: IY-G05
|
SMC | $2.76 | In Stock |
|
Knuckle Pin: Fits 80 mm Bore Dia, IY-G08, CQ2/CQ2-Z
Knuckle Pin, For Bore Diameter 80 mm, Body Material Carbon Steel, Overall Length...
|
KD-1277546
Mfr. #: IY-G08
|
SMC | $4.45 | In Stock |
Mounting Bolt
2 products available
| Image | Product Name | SKU | Brand | Price | Availability |
|---|---|---|---|---|---|
|
|
Mounting Bolt: Fits 20 mm Bore Dia, CQ-M5X40L, CQ2-Z
Mounting Bolt, For Bore Diameter 20 mm, Compatible with Series CQ2-Z, Product Ty...
|
KD-1277486
Mfr. #: CQ-M5X40L
|
SMC | $0.62 | In Stock |
|
|
Mounting Bolt: Fits 20 mm Bore Dia, CQ-M5X85L, CQ2-Z
Mounting Bolt, For Bore Diameter 20 mm, Compatible with Series CQ2-Z, Product Ty...
|
KD-1277483
Mfr. #: CQ-M5X85L
|
SMC | $1.51 | In Stock |
Mounting Pivot Bracket
6 products available
| Image | Product Name | SKU | Brand | Price | Availability |
|---|---|---|---|---|---|
|
|
Mounting Pivot Bracket: Clevis/Pivot Bracket, Fits 20 mm Bore Dia, M6 x 12 Thread Size, CQ-C020
Mounting Pivot Bracket, Mount Type Clevis, Pivot Bracket, Mount Location Rear, F...
|
KD-1277473
Mfr. #: CQ-C020
|
SMC | $10.93 | In Stock |
|
Mounting Pivot Bracket: Clevis/Pivot Bracket, Fits 25 mm Bore Dia, M4 x 10 Thread Size, CQ-C025
Mounting Pivot Bracket, Mount Type Clevis, Pivot Bracket, Mount Location Rear, F...
|
KD-1277470
Mfr. #: CQ-C025
|
SMC | $12.44 | In Stock |
|
Mounting Pivot Bracket: Clevis/Pivot Bracket, Fits 32 mm Bore Dia, M6 x 12 Thread Size, CQ-C032
Mounting Pivot Bracket, Mount Type Clevis, Pivot Bracket, Mount Location Rear, F...
|
KD-1277484
Mfr. #: CQ-C032
|
SMC | $12.44 | In Stock |
|
Mounting Pivot Bracket: Clevis/Pivot Bracket, Fits 40 mm Bore Dia, M6 x 14 Thread Size, CQ-C040
Mounting Pivot Bracket, Mount Type Clevis, Pivot Bracket, Mount Location Rear, F...
|
KD-1339630
Mfr. #: CQ-C040
|
SMC | $14.02 | In Stock |
|
Mounting Pivot Bracket: Clevis/Pivot Bracket, Fits 50 mm Bore Dia, M8 x 16 Thread Size, CQ-C050
Mounting Pivot Bracket, Mount Type Clevis, Pivot Bracket, Mount Location Rear, F...
|
KD-1339626
Mfr. #: CQ-C050
|
SMC | $15.60 | In Stock |
|
Mounting Pivot Bracket: Clevis/Pivot Bracket, Fits 63 mm Bore Dia, M10 x 20 Thread Size, CQ-C063
Mounting Pivot Bracket, Mount Type Clevis, Pivot Bracket, Mount Location Rear, F...
|
KD-1277474
Mfr. #: CQ-C063
|
SMC | $20.25 | In Stock |
Rod Clevis Kit
1 product available
| Image | Product Name | SKU | Brand | Price | Availability |
|---|---|---|---|---|---|
|
|
Rod Clevis Kit: Clevis, Fits 2 in_2 1/2 in Bore Dia, RCDK-05
Rod Clevis Kit, Mount Type Clevis, For Bore Diameter 2 in, 2 1/2 in, Includes (2...
|
KD-1277517
Mfr. #: RCDK-05
|
SMC | $50.50 | In Stock |
Products
Showing 1-8 of 65 results
Table view with product grouping is available when browsing category groups.
