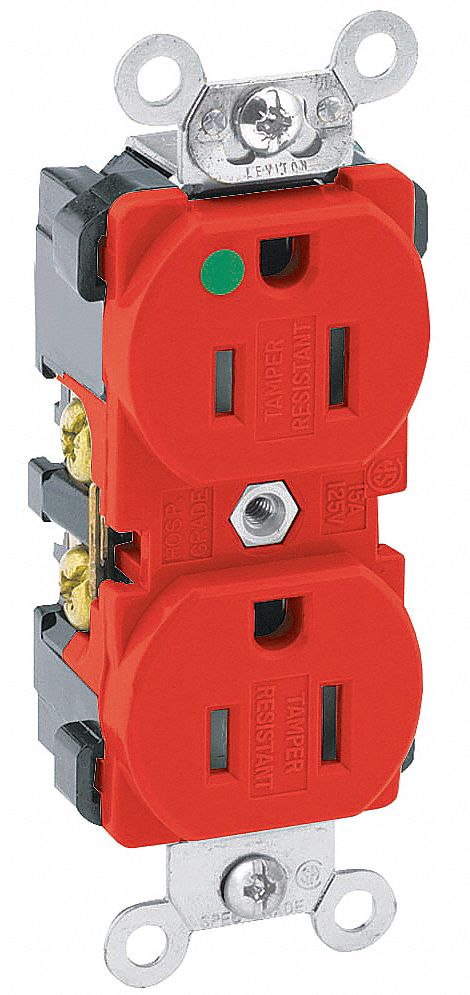

Receptacle: Duplex, 5-15R, 15 A, 125V AC, Red, 2 Pole / 3 Wire Poles & Wires, Gen Purpose
In Stock
$46.55
/each
Earn 46 points with this purchase
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing
LEVITON Receptacle: Duplex, 5-15R, 15 A, 125V AC, Red...
Item 792U05
$46.55
Customers Also Viewed
No related products found.
Product Details
| Catalog Page | 311 |
| Brand | LEVITON |
| Number of Poles | 2 |
| Additional Electrical Protection | Standard Protection |
| Number of Wires | 3 |
| Housing Color | Red |
| Wiring Method | Side, Back |
| NEMA Configuration | 5-15 |
| Resistance Properties | Tamper Resistant |
| Current Rating | 15 A |
| Voltage Rating | 125V AC |
| Resistance Property | General Purpose |
| Wire Connection Types | Screw Terminals |
| Receptacle Type | Duplex |
| Grade | Hospital Grade Fed. Spec. |
| Mfr. Model # | 8200-SGR |
| Country of Origin | Mexico (subject to change) |
| UNSPSC | 0 |
Description
Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant. Only shipped in quantities of 50.
