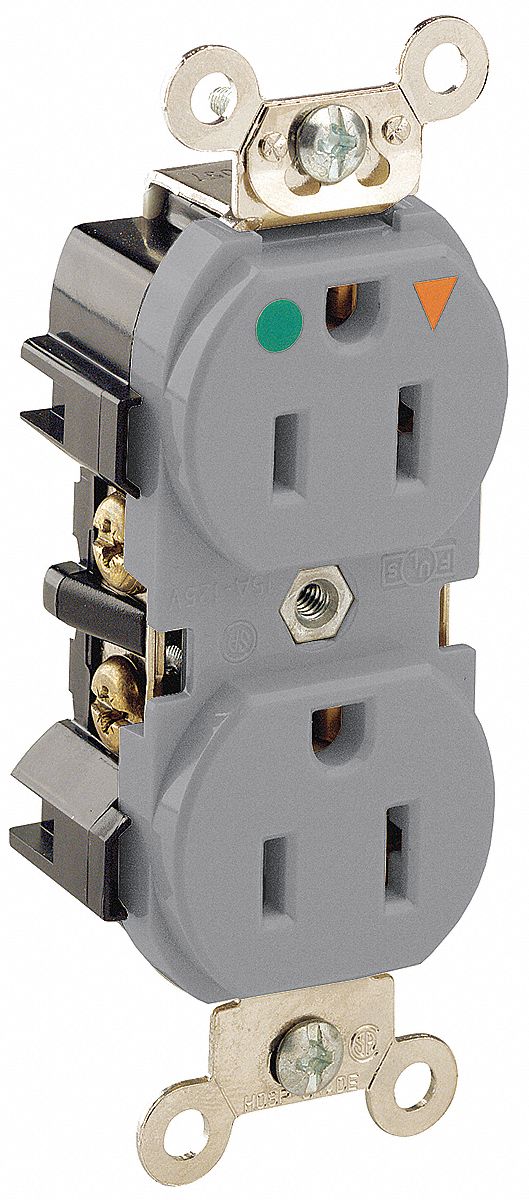

Receptacle: Duplex, 5-15R, 15 A, 125V AC, Gray, 2 Pole / 3 Wire Poles & Wires, Gen Purpose
In Stock
$45.45
/each
Earn 45 points with this purchase
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing
LEVITON Receptacle: Duplex, 5-15R, 15 A, 125V AC, Gra...
Item 792TZ6
$45.45
Customers Also Viewed
No related products found.
Product Details
| Catalog Page | 311 |
| Brand | LEVITON |
| Voltage Rating | 125V AC |
| Additional Electrical Protection | Isolated Ground |
| Current Rating | 15 A |
| Wiring Method | Side, Back |
| Number of Wires | 3 |
| Resistance Property | General Purpose |
| Wire Connection Types | Screw Terminals |
| Housing Color | Gray |
| Receptacle Type | Duplex |
| Grade | Hospital Grade Fed. Spec. |
| NEMA Configuration | 5-15 |
| Number of Poles | 2 |
| Mfr. Model # | 8200-IGG |
| Country of Origin | Mexico (subject to change) |
| UNSPSC | 0 |
Description
Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material PBT Thermoplastic Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable. Only shipped in quantities of 10.
