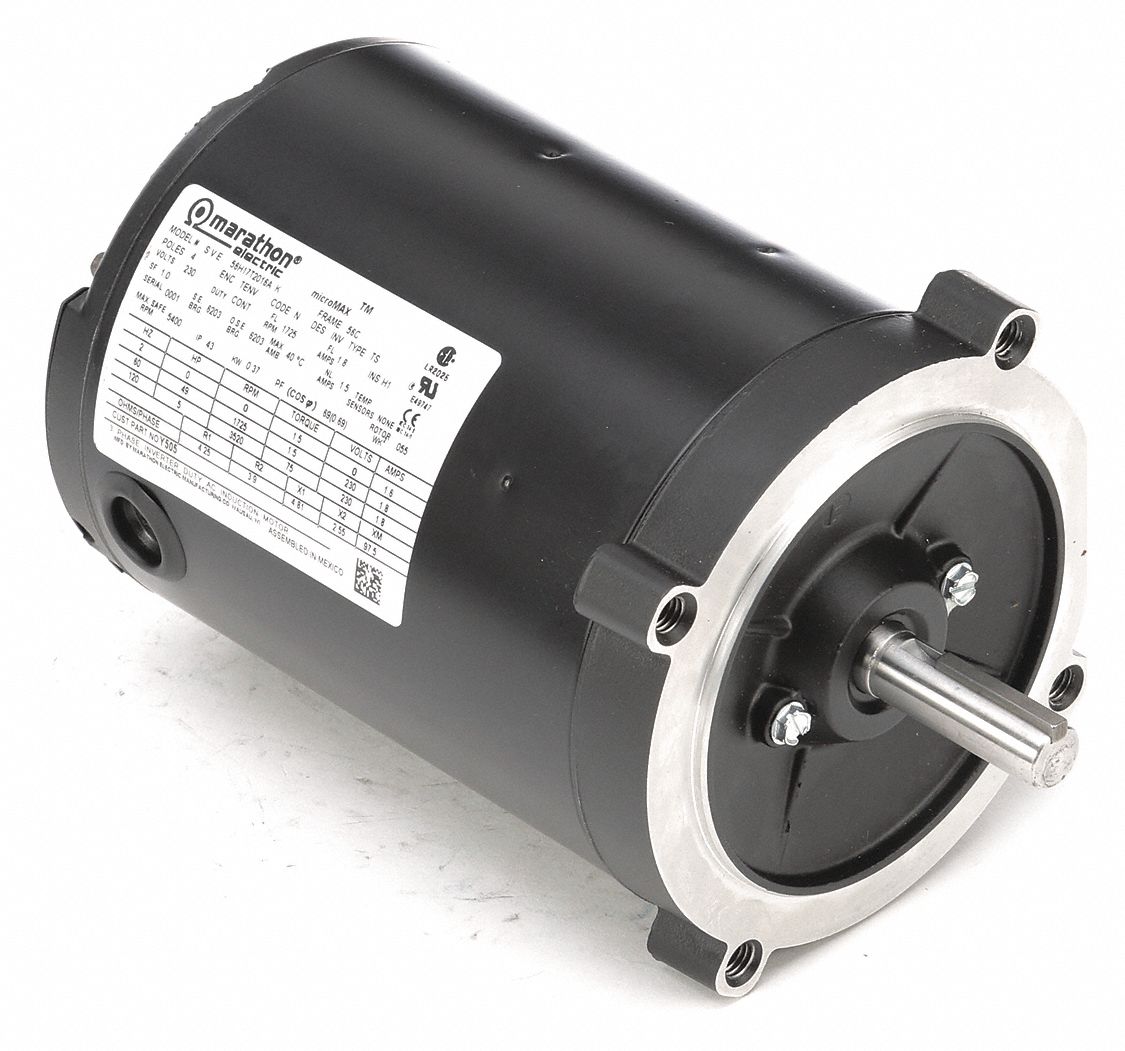

Vector Motor: Totally Enclosed Non-Ventilated, Face Mount, 1/2 HP, 1, 725 Nameplate RPM
In Stock
$540.50
/each
Earn 540 points with this purchase
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing
LEESON Vector Motor: Totally Enclosed Non-Ventilated...
Item 46N470
$540.50
Customers Also Viewed
No related products found.
Product Details
| Brand | LEESON |
| Motor Thermal Protection | None |
| Nameplate RPM | 1,725 |
| Voltage Compatibility | 115/230V AC, 120/240V AC, 208-230/460V AC, 115/200-230V AC, 240V AC, 208-230/277V AC, 208-220/440V AC, 200-230/460V AC, 200-230/440V AC, 115/208-230V AC, 230V AC, 277/230V AC |
| Motor Mounting Type | Face |
| Motor Design | Three-Phase |
| Motor Enclosure Design | Totally Enclosed Non-Ventilated |
| Nominal Efficiency | 74 % |
| Phase | Three |
| Motor Application | Crane |
| Speed Range | 1,000:1 |
| Motor Efficiency Group | Standard Efficient |
| HP | 1/2 |
| Voltage | 230V AC |
| Full Load Amps | 1.8 A |
| Max. Speed | 5,400 RPM |
| RPM Range | 1,701-1,800 |
| Frame | 56C |
| Mfr. Model # | 056H17T2016 |
| Country of Origin | Mexico (subject to change) |
| UNSPSC | 26101612 |
Description
Vector Motor, Three Phase, Motor Design 3-Phase, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230V AC, Full Load Amps 1.8 A, 56C Frame, Torque 1.5 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
