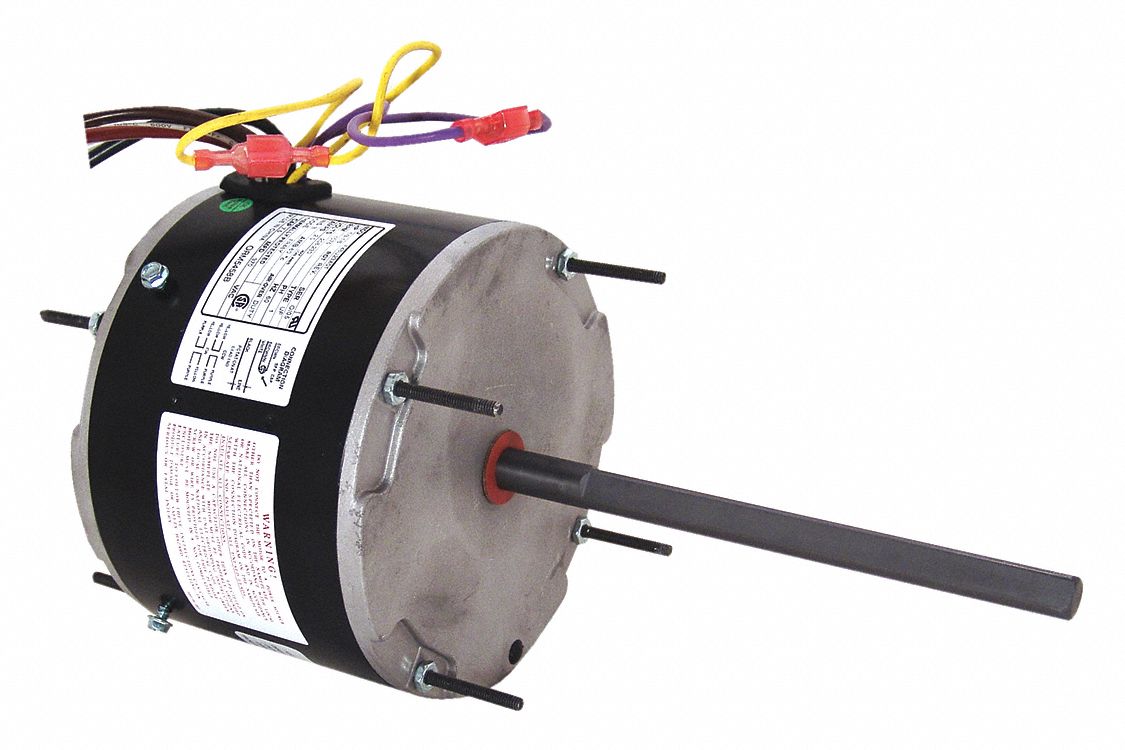

Condenser Fan Motor: Stud Mount, Totally Enclosed Air-Over, 1/3 hp Nameplate Horsepower
In Stock
$333.00
/each
Earn 333 points with this purchase
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing
CENTURY Condenser Fan Motor: Stud Mount, Totally Encl...
Item 3RCP9
$333.00
Customers Also Viewed
No related products found.
Product Details
| Catalog Page | 49 |
| Brand | CENTURY |
| Motor Design | Permanent Split Capacitor |
| Shaft Dia. | 1/2 in |
| Shaft Length | 6-3/4 in |
| Hz | 60 Hz |
| Horsepower | 1/3 hp |
| Motor Mounting Type | Stud |
| No. of Speeds | 1 |
| Motor Service Factor | 1 |
| Voltage | 208-230V AC |
| Ins. Class | B |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Body Dia. | 5.6 in |
| Usable @ 208V | Yes, Usable at 208V |
| Motor Thermal Protection | Auto |
| Manufacturer Part Number | ORM5488B |
| Full Load Amps | 2.1 A |
| RPM Range | 200 - 975 |
| Motor Shaft Rotation | CW/CCW |
| Frame | 48 |
| Nameplate RPM @ 60 Hz | 825 RPM |
| Phase | Single |
| Mfr. Model # | ORM5488B |
| Country of Origin | India (subject to change) |
| UNSPSC | 26101602 |
Description
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.1 A Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz Hz, Replacement For Mfr. No. 3459, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
