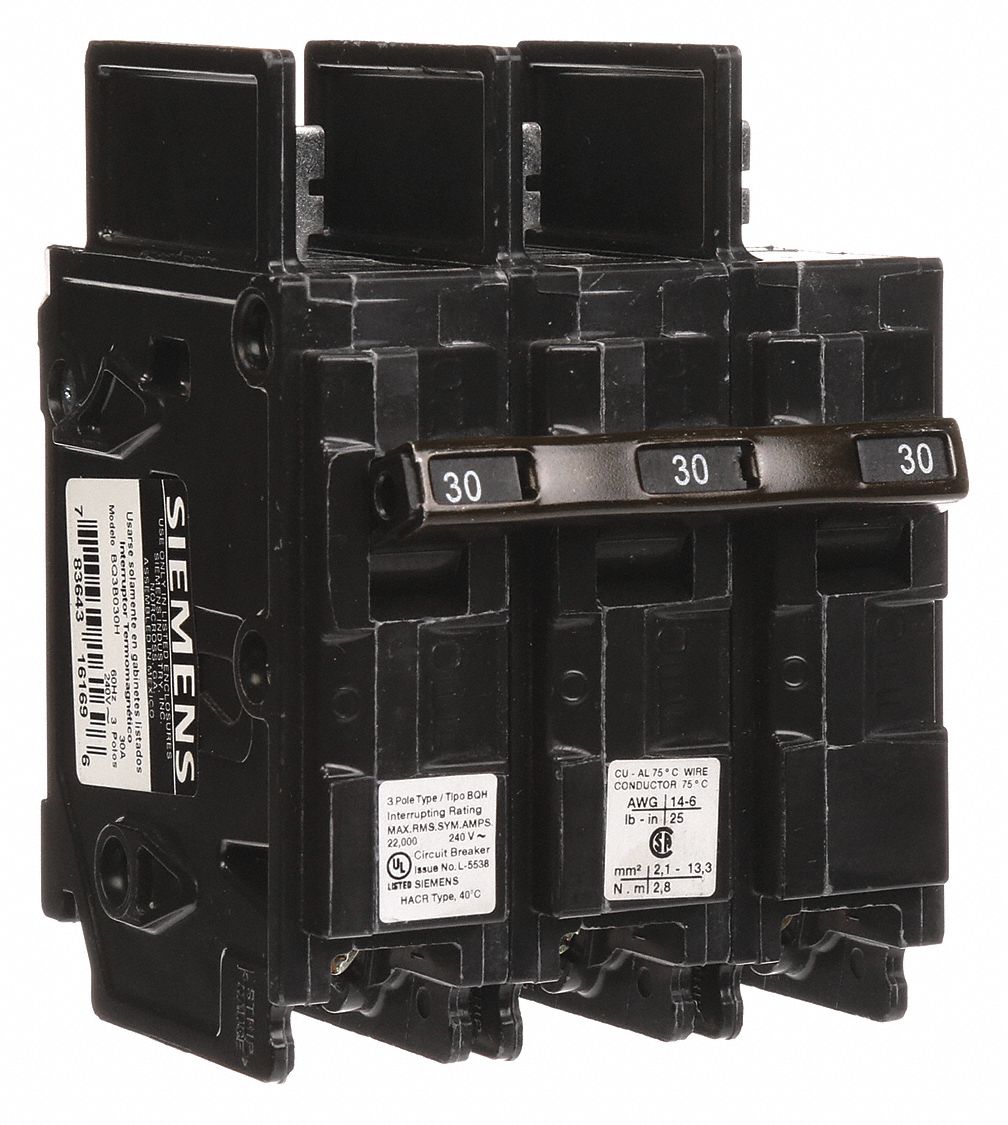

Miniature Circuit Breaker: 30 A Amps, 240V AC, 3 Poles, High Interrupting Capacity
In Stock
$1,264.00
/each
Earn 1264 points with this purchase
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing
SIEMENS Miniature Circuit Breaker: 30 A Amps, 240V AC...
Item 3HZY4
$1,264.00
Customers Also Viewed
No related products found.
Product Details
| Catalog Page | 193 |
| Brand | SIEMENS |
| Number of Poles | 3 |
| Circuit Breaker Mounting Style | Bolt On |
| AC Voltage Rating | 240V AC |
| Max. AIR Rating | 22kA at 240V AC |
| Series | BQH |
| Circuit Breaker Type | High Interrupting Capacity |
| Phase | Three |
| Amps | 30 A |
| Mfr. Model # | BQ3B030H |
| Country of Origin | Mexico (subject to change) |
| UNSPSC | 39121601 |
Description
Miniature Circuit Breaker, Amps 30 A, AC Voltage Rating 240V AC, Circuit Breaker Type High Interrupting Capacity, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Phase Three, Series BQH, Max. AIR Rating 22kA at 240V AC, For Use With Siemens Panelboards, Terminal Connection Lug, Frame Size 125A/BQH, Length 3 in, Width 3 in, Depth 3 in, Max. Operating Temp. 104 Degrees F, Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
