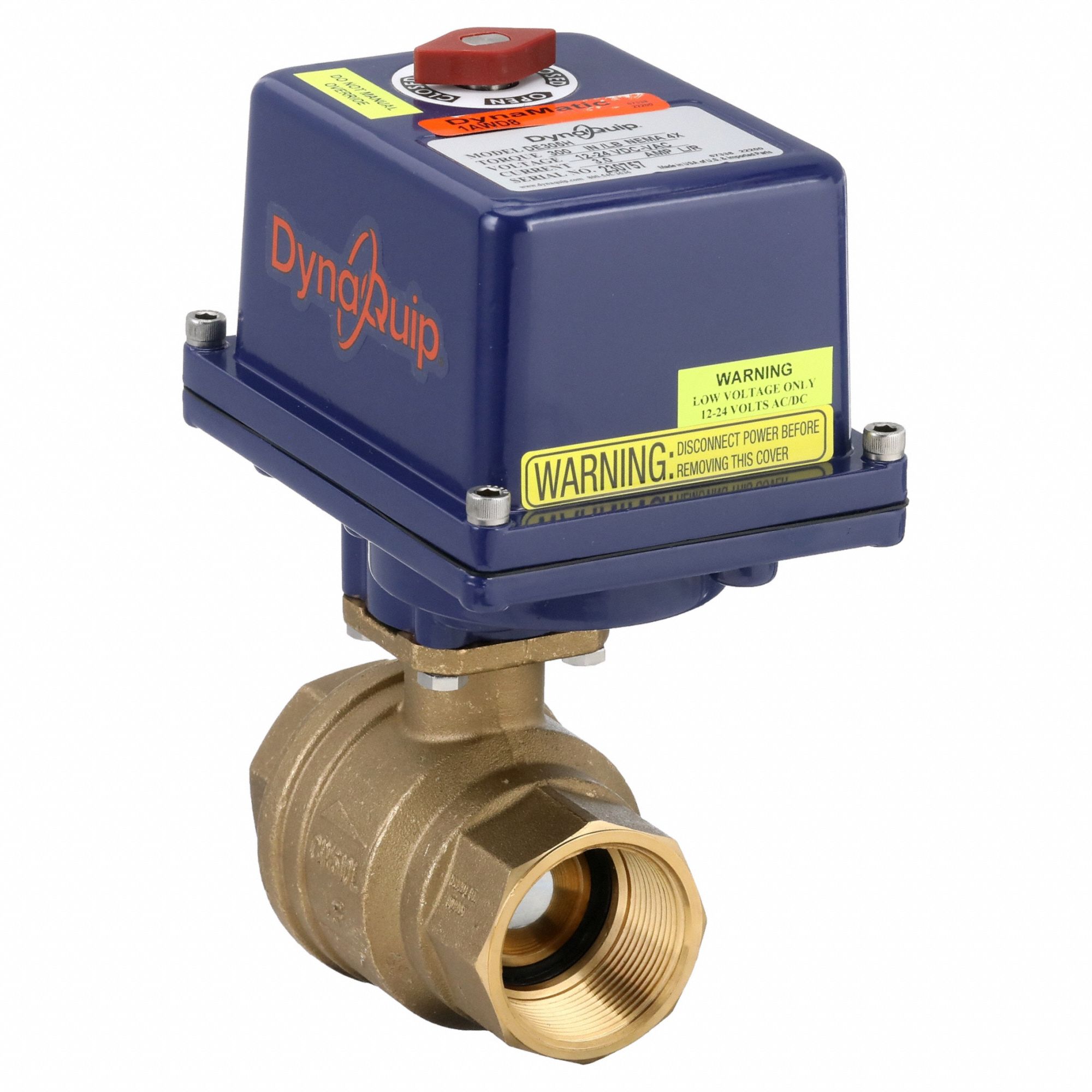

Electrically Actuated Two-Way Ball Valve: 1 1/4 in, Brass, 12 to 24V AC/DC
In Stock
$1,170.00
/each
Earn 1170 points with this purchase
Request quantity discount pricing
Compliance & Restrictions
Hazardous Material
Contains hazardous waste materials
You're Viewing
DYNAQUIP CONTROLS Electrically Actuated Two-Way Ball Valve: 1 1...
Item 1AWD7
$1,170.00
Customers Also Viewed
No related products found.
Product Details
| Brand | DYNAQUIP CONTROLS |
| NEMA Enclosure Rating | 4, 4X |
| Valve Body Style | Straight |
| Nominal Valve Size | 1-1/4 in |
| For Media | Compressed Air, Natural Gas, Oil |
| 3-A Standard Compliance | Not Rated |
| Seat Material | RPTFE |
| Standards | ANSI 372 |
| Valve Ways | 2-Way |
| Stem Material | Nickel-Plated Brass |
| Maximum Pressure - Steam | 150 psi |
| Actuator Features | Position Indicator, Thermal Overload Protection, Heater |
| IP Rating | IP66 |
| Actuator Cycle Time - 90 Degrees | 6 sec |
| Body Material | Brass |
| Seal Material | FKM |
| Ball Material | Chrome-Plated Brass |
| NSF Certifications for Food and Drinking Water | NSF 61 |
| Ball Port Style | Full Port |
| Voltage | 12 to 24V AC/DC |
| Fail Safe Position | Fail Last |
| Valve Construction | Two-Piece |
| Media Temp. Range | -20 Degrees F to 370 Degrees F |
| Coefficient of Volume (Cv) | 77 |
| Connection Type | FNPT x FNPT |
| Maximum Operating Pressure Differential | 300 psi |
| Maximum Pressure - Operating | 600 psi |
| Mfr. Model # | EHH26ATE25H |
| Country of Origin | USA (subject to change) |
| UNSPSC | 31251505 |
Description
Electrically Actuated Two-Way Ball Valve, Ball Material Chrome-Plated Brass, Nominal Valve Size 1 1/4 in, Maximum Pressure - Operating 600 psi, Actuator Operation 90 Degrees , Valve Body Style Straight, Seat Material RPTFE, Seal Material FKM, Voltage 12 to 24V AC/DC, Fail Safe Position Fail Last, IP Rating IP66, Actuator Cycle Time - 90 Degrees 6 sec, Valve Construction Two-Piece, Actuator Features Heater, Position Indicator, Thermal Overload Protection, Connection Gender - Side 1 Female
